UltraProfiler plus - Cutterheads HW (straight) - MAN

Product

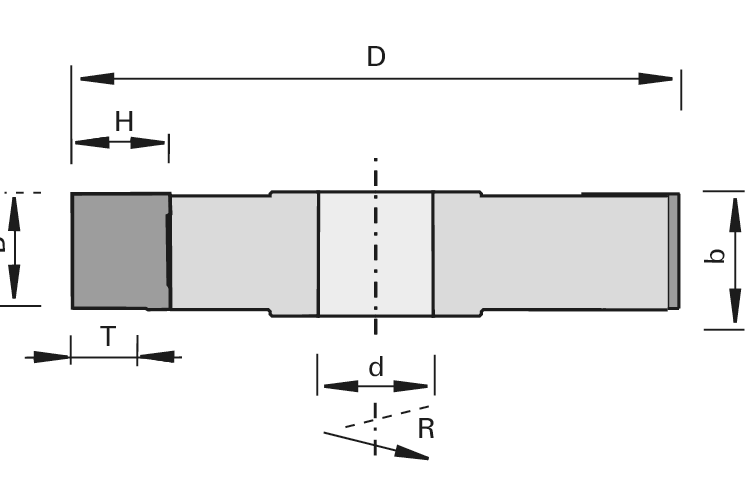

Drawing

  • UltraProfiler plus
  • Tungsten Carbide [HW]
  • MAN

Article

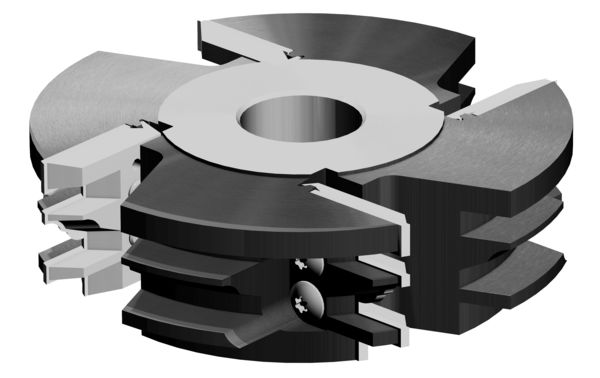

Description

Machine / Application

  • machining centers
  • double end tenoners
  • molders
  • table shapers
  • for profiling of solid woods and wood-based panels

Design

  • cutterhead body made from extremely tight aluminum alloy
  • with shear angle
  • cutting material: HW HL Board 06 for solid woods and wood-based panels

Advantages

  • large profile depths possible
  • cutterhead body and knives will be profiled according to customer specifications
  • cutting speed up to 80 m/s
  • concentric accuracy 0,03 mm

Notes

  • knives available in Topline design (polished face, ultra-fine ground clearance surface)
  • with a larger shear angle, the number of teeth may be lower
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm]
B
[mm]
H
[mm]
Ø d
[mm]
Ø dmax
[mm]
Z T
[mm]
Drawing
[Foil]
nmin-nmax
[min-1]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

115 15 30 30 30 2-3 15 UP 6500-13300 UP1
|
125 15-60 40 30 30 2-4 26 UP 6500-12300 UP2
|
150 15-60 40 30 50 2-6 26 UP 5500-10200 UP3
|
180 15-60 40 30 50 2-6 26 UP 5000-8500 UP4
|
