185382 - Profile Cutterhead Sets - flooring - unprofiled

Product

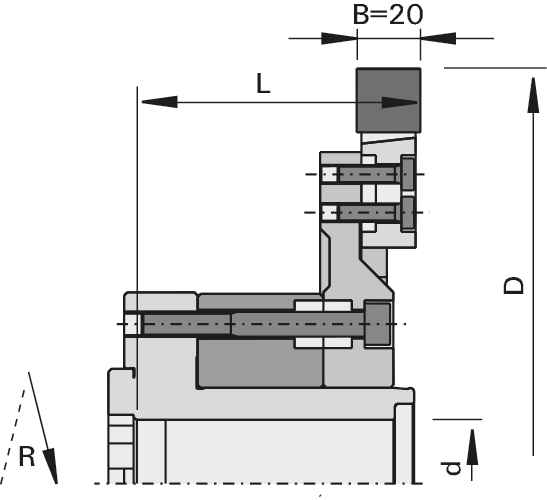

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • through-feed machines
  • double end tenoners
  • for profiling of the longitudinal and transverse profiles in machining of flooring (laminate, parquet and LVT)

Design

  • Segments are unprofiled
  • Modular design: bushing, flange, cutterhead and segment
  • Design from Z2 to Z12
  • All parts are available on stock
  • Segment B=10 mm, flush mounting is not possible

Advantages

  • fast, customer-specific profiling
  • tools are available on short notice
  • ideal for profile developments and tests

Notes

  • single parts are mounted to sets
  • cutting inserts can be profiled separate from the cutterhead
  • reproducibility after exchange: max 0.05 mm in runout-accuracy / concentricity
Feature Value
Ø D = Cutting circle diameter 260.4 [mm]
B = Cutting width 20 [mm]
Ø d = Bore diameter 40 [mm]
Z = No. of teeth 3
nmax = maximum RPM 6,000 [min-1]
L/R = cutting direction R
L = Delivery Status

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Spare parts / accessories

Product picture Description Design Ident-No. Comp./ Inqu.
Segments DP-tipped 20x56x25N 185370
|
Tool body profile cutterheads Ø210 185043
|
Spacers Ø119x5,0xØ60 185365
|
Spacers Ø119x39,5xØ60 185044
|
Hydro Clamping Bushings with hexagonal adapter below - tools with bore Ø60x68x40 L=96 172678
|
Head Cap Screws M8x70 DIN EN ISO 4762 179470
|
Head Cap Screws - with hexagon socket M6x20-8.8 DIN 6912 185355
|
