Selection via tool type

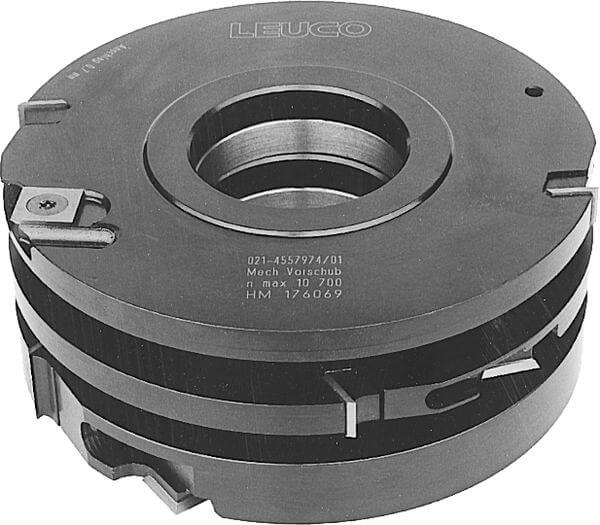

Groove Bed Cutterhead Sets HW

Product

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • molders with groove bed section Weinig
  • for cutting of guide grooves in solid woods

Design

  • n max = 10,000 min-1

Advantages

Notes

  • application with the grain
  • complete tool sets for specific wood widths "B"

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z nmax
[min-1] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

140 80 35 2+2 10,000 L 176071
|
140 100 35 2+2 10,000 L 176072
|
140 120 35 2+2 10,000 L 176073
|
140 140 35 2+2 10,000 L 176074
|
140 170 35 2+2 10,000 L 176075
|
140 80 40 2+2 10,000 L 176076
|
140 100 40 2+2 10,000 L 176077
|
140 120 40 2+2 10,000 L 176078
|
140 140 40 2+2 10,000 L 176079
|
140 170 40 2+2 10,000 L 176080
|
140 80 50 2+2 10,000 L 176081
|
140 100 50 2+2 10,000 L 176082
|
140 120 50 2+2 10,000 L 176083
|
140 140 50 2+2 10,000 L 176084
|
140 170 50 2+2 10,000 L 176085
|
