Selection via tool type

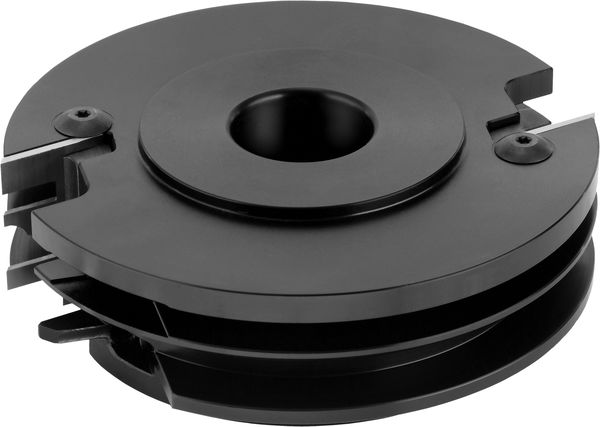

Counter Profile Cutterheads HW

Product

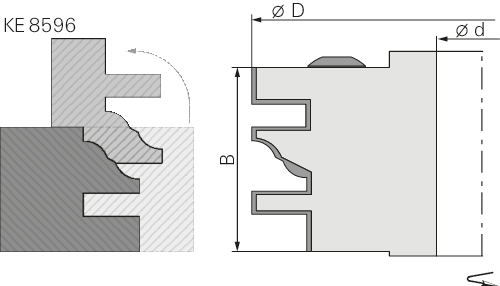

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • spindle moulder
  • for milling of length- and counterprofiles on doors, furniture parts and door panels in solid woods and wood-based panels

Design

  • body made from high-strength aluminium
  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 06
  • chip limiter design

Advantages

  • cutterhead for mounting of several profile knives
  • simple knife change

Notes

  • counter profile set with profile KE8596
  • alternative profiles not included in delivery

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

130 40 30 2 6000-12000 50664637
|
