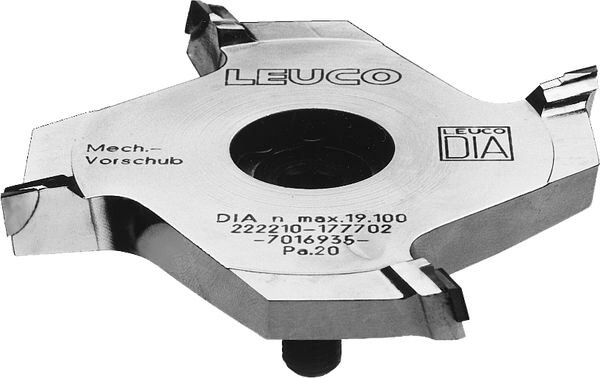

Panel Raising Cutters DP HSK 25R Postforming for U and L profiles - Homag
Article
Description
Machine / Application
- postforming machines Homag
- for panel raising during the direct postforming process
Design
- with shear angle
- resharpenable area 3.5 mm
- n max = 24,000 min-1
Advantages
- optimum cutting quality thanks to high concenctric accuracy and precise tool balancing
Notes
- for panel raising of the U profile and flush-cutting of the L profile
- application against feed
- sense of rotation according to VDMA 8849
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
|||||||||
100 | 5,0 | 28 | HSK 25R | 4 | 24,000 | R | 177702 |
