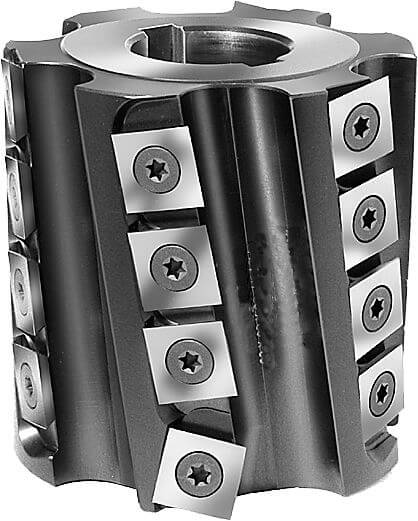

Spiral Cutterheads HW - Aluminum

Product

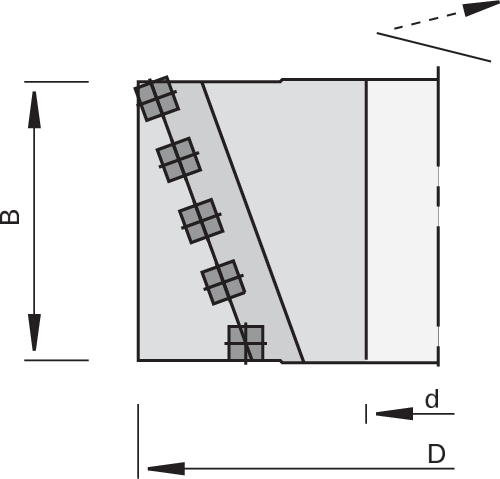

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • molders
  • stationary milling centers
  • for milling, rough-planing and finish-planing in solid woods

Design

  • with four-sided turnover knives, with rounded edges
  • spiral cutting layout of turnover knives and cut division
  • high-tensile aluminum body

Advantages

  • easy hogging, low cutting pressure and low noise level

Notes

  • For a medium quality finish cut

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

100 80 40 2+2 12,000 187642
|
125 100 40 2+2 12,000 187643
|
125 130 40 2+2 12,000 187644
|
125 170 40 2+2 12,000 187646
|
125 180 40 2+2 12,000 187649
|
125 210 40 2+2 12,000 187650
|
125 230 40 2+2 12,000 187651
|
125 240 40 2+2 12,000 187654
|
125 100 40 3+3 12,000 187656
|
125 130 40 3+3 12,000 187657
|
125 150 40 3+3 12,000 187658
|
125 180 40 3+3 12,000 187659
|
125 230 40 3+3 12,000 187661
|
125 240 40 3+3 12,000 187660
|
140 240 40 3+3 12,000 187662
|
