Spiral Cutterheads HW- with spur
Product

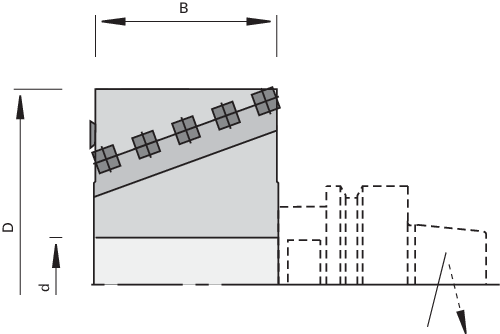

Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- stationary milling centers
- for dressing, rough-planing, jointing, rabbeting, copying of solid woods and laminated timber

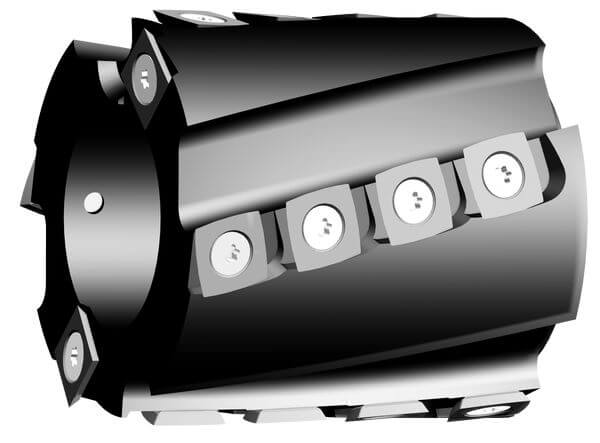

Design
- with four-sided turnover knives, with rounded edges
- 2 front spurs HW
- spiral cutting layout of turnover knives and cut division
- high-tensile aluminum body
Advantages
- easy hogging, low cutting pressure and low noise level
- high hogging volume
Notes
- for HSK mounting arbors with double key without spacer
- for Ident-No. 183678 clamping length 50 mm with HSK mounting arbor
- for Ident-No. 183679 clamping length 80 mm with HSK mounting arbor
|
Ø D
[mm] |
B
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
nmax
[min-1] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 80 | 80 | 30 | 2+2+V2 | 8x3 | 18,000 | 183678 | ||
| 80 | 100 | 30 | 2+2+V2 | 8x3 | 18,000 | 183679 | ||
