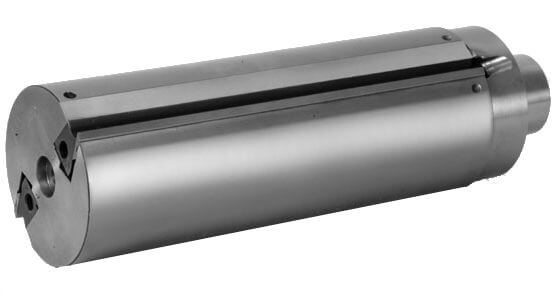

Planing Cutterheads HS with Weinig HSK and Centrolock clamping bar

Product

Drawing

  • High Speed Steel [HS]
  • MEC

Article

Description

Machine / Application

  • molders "Weinig Powermat"
  • for planing of solid woods

Design

  • n max = 12,000 min-1

Advantages

  • quick knife change thanks to Centrolock clamping bar

Notes

  • clamping by means of front screw
  • HS-tipped turnover knives
  • alternative cutting material: HW for hard woods, glued timber and MDF

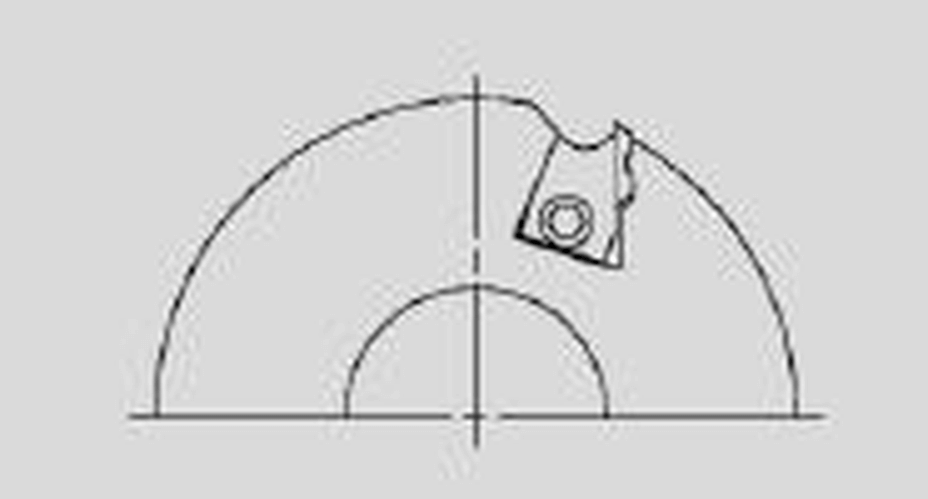

  • picture shows sense of rotation left (acc. to DIN left)
  • Turnover Knives see chapter Turnover Knives, Knives, Inserts

Table- and picture caption ...

Ø D
[mm]
B
[mm]
Ø d
[mm]
Z Hook angle
[°]
nmax
[min-1]
L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

93 60 Weinig-HSK 2 27 12,000 L 181728
|
93 80 Weinig-HSK 2 27 12,000 L 181729
|
93 100 Weinig-HSK 2 27 12,000 L 181730
|
93 130 Weinig-HSK 2 27 12,000 L 181731
|
93 150 Weinig-HSK 2 27 12,000 L 181732
|
93 170 Weinig-HSK 2 27 12,000 L 181733
|
93 190 Weinig-HSK 2 27 12,000 L 181734
|
93 210 Weinig-HSK 2 27 12,000 L 181735
|
93 240 Weinig-HSK 2 27 12,000 L 181736
|
93 60 Weinig-HSK 2 27 12,000 R 181737
|
93 80 Weinig-HSK 2 27 12,000 R 181738
|
93 100 Weinig-HSK 2 27 12,000 R 181739
|
93 130 Weinig-HSK 2 27 12,000 R 181740
|
93 150 Weinig-HSK 2 27 12,000 R 181741
|
93 170 Weinig-HSK 2 27 12,000 R 181742
|
93 190 Weinig-HSK 2 27 12,000 R 181743
|
93 210 Weinig-HSK 2 27 12,000 R 181744
|
93 240 Weinig-HSK 2 27 12,000 R 181745
|
