Selection via tool type

Planing and Rabbeting Cutterheads HW - mounted on arbor

Product

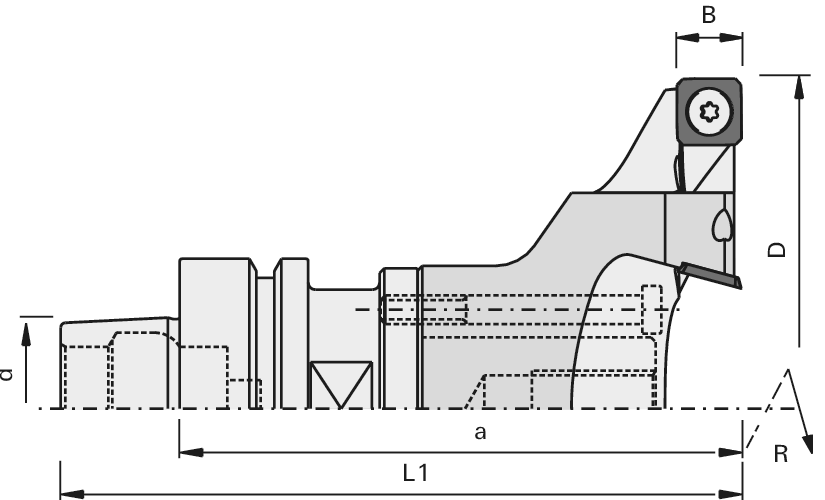

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • CNC routers
  • for planing and rabbeting in wood-based panels

Design

  • mounted on tool holder HSK 63 F

Advantages

  • high milling performance when dressing the workbench boards, e.g. with Nesting-technology
  • smooth surface thanks to special cutting edge geometry

Notes

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		a
[mm] 		B
[mm] 		b
[mm] 		L1
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		NL nmax
[min-1] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

150 113 14 51.9 138 HSK 63F 4 8x3,3 6/7/48 10,100 R 182440
|
