DIAMAX Jointing Cutters DP - HOLZ-HER - AirStream-System

Product

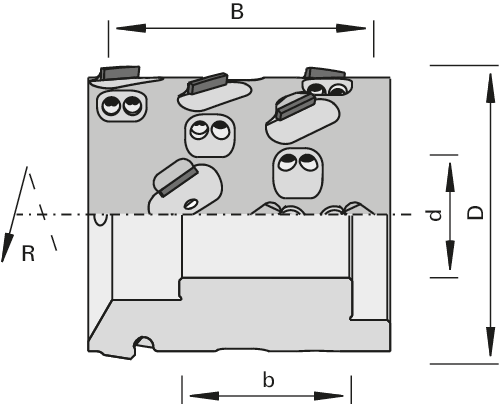

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • through feed machines HOLZ-HER aggregate 1801 / 1802 / 1804
  • for extremely noise-reduced, chip-free jointing of melamine-, paper-, HPL-laminated, foiled and veneered panels

Design

  • with patented AirStream-System
  • symmetrical and asymmetrical design
  • 35° shear angle
  • resharpening area 1.5 mm

Advantages

  • optimal glueing of edges
  • extremely noise and flow-optimized thanks to AirStream-System
  • considerably increased chip caption degree thanks to AirStream-System
  • increase of edge life thanks to reduction of multiple hogging
  • less chips remain inside of the machine
  • high cutting quality thanks to large shear angle

Notes

  • compatible with Pro Lock clamping on older aggregates
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		L/R Machine/Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

70 48 41 30 2+2 8x3,3 18,000 L HOLZ-HER aggregate 1801 / 1802 asymmetrical 185800
|
70 48 41 30 2+2 8x3,3 18,000 R HOLZ-HER aggregate 1801 / 1802 asymmetrical 185801
|
70 64 41 30 2+2 8x3,3 18,000 L HOLZ-HER aggregate 1801 / 1802 asymmetrical 185802
|
70 64 41 30 2+2 8x3,3 18,000 R HOLZ-HER aggregate 1801 / 1802 asymmetrical 185803
|
70 48 41 30 3+3 8x3,3 18,000 L HOLZ-HER aggregate 1801 / 1802 asymmetrical 185806
|
70 48 41 30 3+3 8x3,3 18,000 R HOLZ-HER aggregate 1801 / 1802 asymmetrical 185807
|
70 64 41 30 3+3 8x3,3 18,000 L HOLZ-HER aggregate 1801 / 1802 asymmetrical 185808
|
70 64 41 30 3+3 8x3,3 18,000 R HOLZ-HER aggregate 1801 / 1802 asymmetrical 185809
|
100 63 40 30 3+3 8x3,3 18,500 L HOLZ-HER aggregate 1804 symmetrical 186937
|
100 63 40 30 3+3 8x3,3 18,500 R HOLZ-HER aggregate 1804 symmetrical 186936
|
