182616 - V-groove profile cutterheads HW for aluminum composite materials - HOLZ-HER

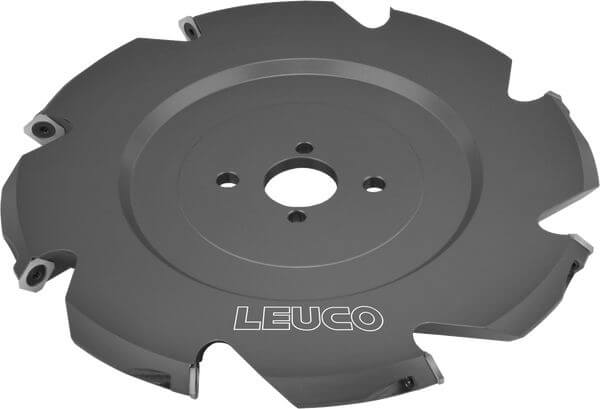

Product

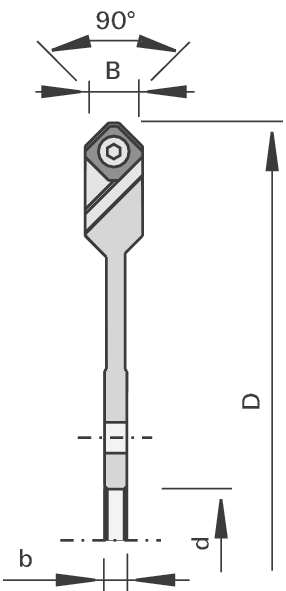

Drawing
-
- Tungsten Carbide [HW]
- MAN
Technical data
Description
Machine / Application
- vertical panel sizing saws
- for the production of facade elements, frames, corner elements from aluminum composite material, gutbond etc.
Design
- anodized aluminum body
- cutting material: HL Solid 40
Advantages
- consistent cutting circles thanks to turnover knives
- simple handling thanks to quick knife change
Notes
- attachment screw for turnover knives executed with two Torx; T15 from front and T10 from back
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 244 [mm] | |
| B = Cutting width | 16,5 [mm] | |
| b = Hub width | 6.5 [mm] | |
| Ø d = Bore diameter | 30 [mm] | |
| Z = No. of teeth | 8 | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Turnover Knives
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Profile Turnover Knives HW for aluminum composite materials - HOLZ-HER, 90 degrees | 14x14x2.0N | 182079 | |||
|
available from stock |
|||||
