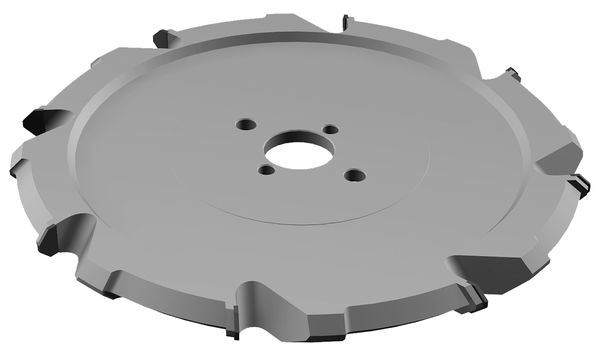

DIAMAX V-groove profile cutters DP for aluminum composite materials

Product

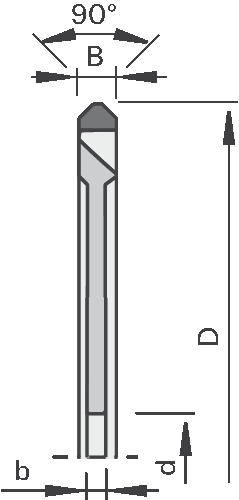

Drawing

  • Polycrystalline diamond [DP]
  • MAN

Article

Description

Machine / Application

  • vertical panel sizing saws
  • for V-grooves in aluminum composite materials (Alucobond, Dibond, etc.)

Design

  • cutting material: DP
  • polished face
  • high-finish clearance face
  • milling cutter angle = 90°
  • n max=5300 min-1

Advantages

  • very long edge lives particularly in composite materials with mineral core
  • Excellent cutting quality thanks to high concentric accuracy and precise tool balancing

Notes

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

244 13 6.5 30 8 187124
|
