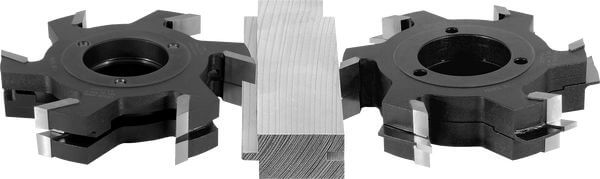

Tongue and Groove Tools HS

Product

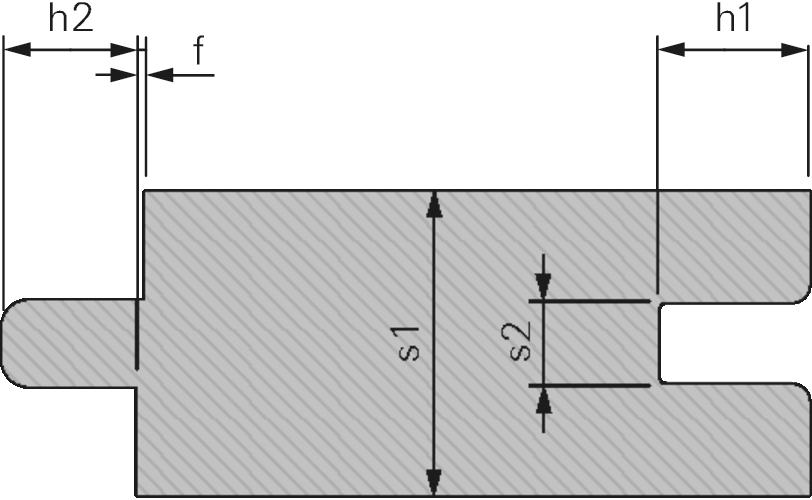

Drawing

  • High Speed Steel [HS]
  • MEC

Article

Description

Machine / Application

  • molders
  • double end tenoners
  • for tongue and groove board with or without space allowance in material (=open joint) or chamfer in soft and hard woods

Design

  • body made from steel
  • adjustable by means of spacers
  • highest precision thanks to plane parallelism of all parts
  • secured against rotation by means of 3 driving pins on minor diameter 75 mm

Advantages

Notes

  • indicate sense of rotation, direction of feed and face side according to diagram I, II, III or IV when placing an order
  • without indications we will deliver according to diagram I
  • delivery with HW-tipping possible with surcharge

Table- and picture caption ...

Ø D
[mm]
B
[mm]
Ø d
[mm]
Z s1
[mm]
nmax
[min-1]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

180 35 40 6 12-36 8,000 58532354
|
180 35 40 6 15-27 8,000 58532358
|
180 35 40 6+3 12-27 8,000 58532361
|
180 35 40 6 12-36 8,000 58532382
|
180 35 40 6 15-27 8,000 58532384
|
180 35 40 6 15-27 8,000 58532387
|
180 35 40 6+3 12-27 8,000 58532390
|
180 35 40 6+3 14-19 8,000 58532391
|
