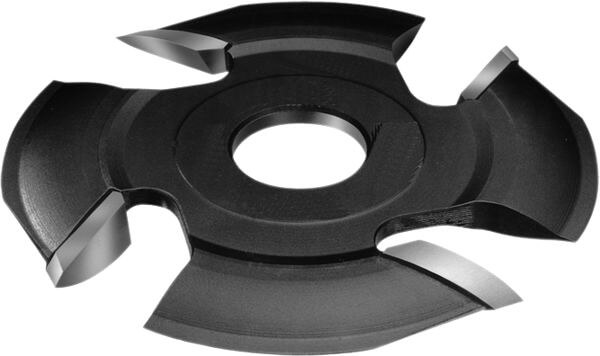

70176420 - Cutters HW for removing resin pockets
Product

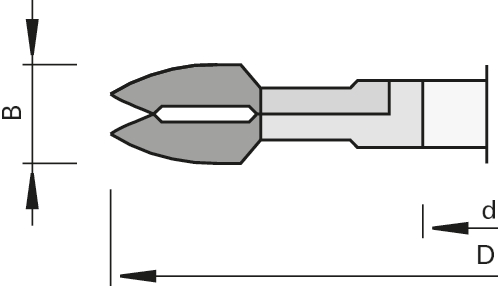

Drawing
-
- Tungsten Carbide [HW]
- MAN
Technical data
Description
Machine / Application
- Mini-Spot machines
- for cutting out defects in solid woods
Design
- with alternating shear angle
Advantages
Notes
- for patch sizes 1-4
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 100 [mm] | |
| B = Cutting width | 15 [mm] | |
| Ø d = Bore diameter | 22 [mm] | |
| Z = No. of teeth | 4 | |
| nmin-nmax = RPM range | 7700-13300 [min-1] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
