Miter Glue Joint Profile Cutterheads HW
Product

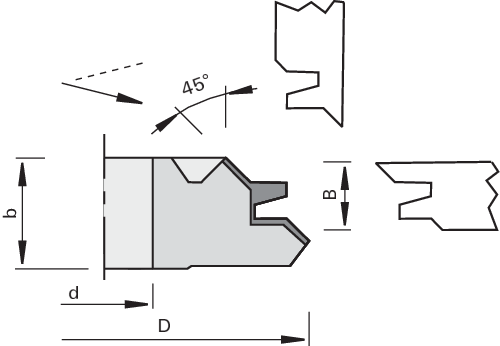

Drawing
-
- Tungsten Carbide [HW]
- MAN
Article
Description
Machine / Application
- molders
- table shapers
- for cutting of miter lock joints in solid woods and wood-based panels
Design
- body made from high-strength aluminium alloy
- cutting edges parallel to cutter axis
- n = 4,600 - 7,800 min-1
Advantages
- continuous high profile accuracy thanks to profile knives
- profile play adjustable by means of shims underneath the grooving/chamfering knives
Notes
- application against feed
- wood thickness approx. 15 mm to max. 26 mm
|
Chamfer∡
[°] |
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
nmin-nmax
[min-1] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 45 | 174 | 26 | 49 | 30 | 2+2 | 4600-7800 | 176097 | ||
