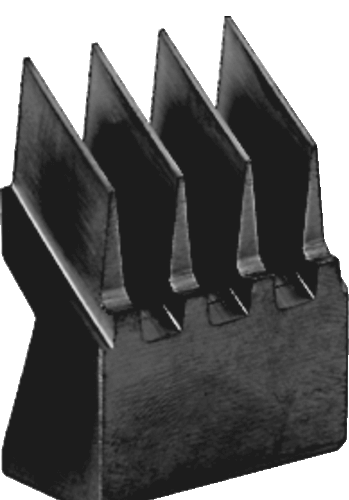

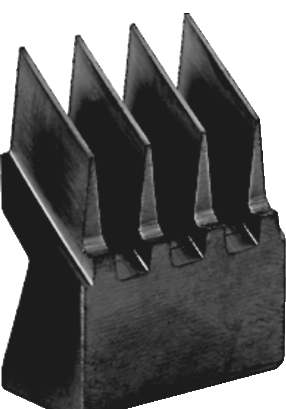

192180 - Finger Joint Cutterheads - with exchangeable HS cutting edges
Product
Drawing
-
- High Speed Steel [HS]
- MEC
Technical data
Description
Machine / Application
- finger joint machines
- for longitudinal joints in highly stressed components
Design
- tool body made from steel
- 4/6 exchangeable knives (160 mm) or 6/8 exchangeable knives (250 mm) for particularly high feedrates
- secured against twisting
- cutting material: HS-topcoat
Advantages
- multiple edge lives compared to conventional material, increased edge lives and higher wear resistance and gliding features thanks to topcoat coating
Notes
- included in delivery: tool body without knife inserts
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 129.8 [mm] | |
| Ø D1 = Basis cutting circle diameter | 160/170 [mm] | |
| B = Cutting width | 30,4 [mm] | |
| b = Hub width | 30.4 [mm] | |
| Ø d = Bore diameter | 50 [mm] | |
| Z = No. of teeth | 2+2 | |
| nmax = maximum RPM | 8,500 [min-1] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
