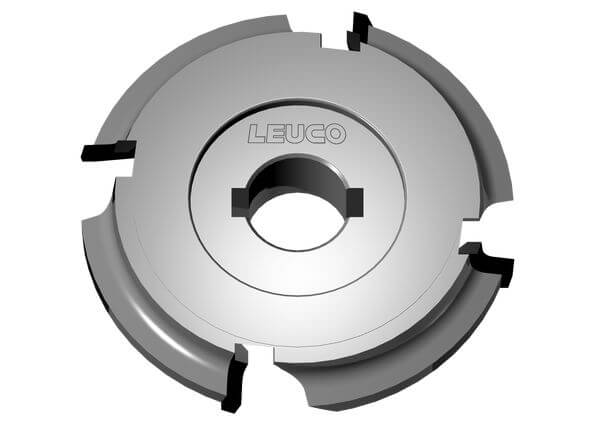

Edge Rounding Cutters HW - SCM-IDM

Product

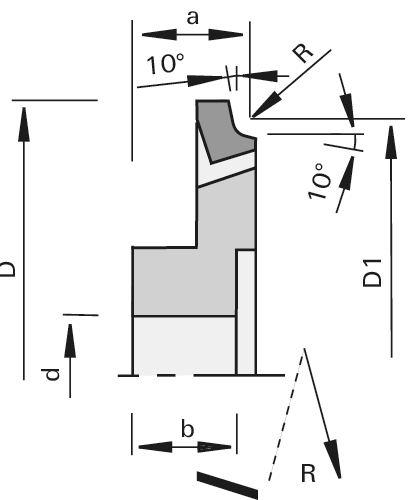

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • edge banding machines SCM-IDM with ED system and aggregate C1 / C2
  • for rounding of solid wood, veneer and plastic edge bands

Design

  • with shear angle
  • polished face and high-finish clearance angle
  • n max = 18,000 min-1

Advantages

  • optimized chip removal
  • less chips remain inside of the machine
  • no malfunctions due to chips
  • reduction of suction power
  • noise reduced

Notes

  • constant basic dimensions a and D1
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

R
[mm]
Ø D
[mm]
Ø D1
[mm]
a
[mm]
b
[mm]
Ø d
[mm]
Z DKN
[mm]
Hook angle
[°]
Shear∡
[°]
L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

1,0 70 62,031 14.5 14 16 3 5x2,3 15 15 L 182911
|
1,0 70 62,031 14.5 14 16 4 5x2,3 15 15 R 182910
|
1,5 70 63,046 14.5 14 16 4 5x2,3 15 15 L 182909
|
1,5 70 63,046 14.5 14 16 4 5x2,3 15 15 R 182908
|
2,0 70 64,062 14.5 14 16 4 5x2,3 15 15 L 182907
|
2,0 70 64,062 14.5 14 16 4 5x2,3 15 15 R 182906
|
3,0 70 66,092 14.5 14 16 4 5x2,3 15 15 L 182903
|
3,0 70 66,092 14.5 14 16 4 5x2,3 15 15 R 182902
|
