187615 - DIAMAX Multi-profile edge trimming cutter DP - HOLZ-HER FR701 Multi - AirStream-System
Product

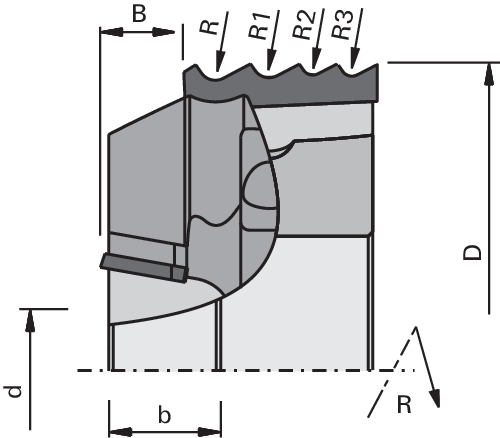

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines HOLZ-HER aggregate FR701 Multi
- for flush-cutting, rounding and chamfering of solid wood, veneer and plastic edge bands
Design
- with shear angle
- polished face and high-finish clearance angle
- AirStream-System
- n max = 24,000 min-1
Advantages
- increased chip caption degree thanks to AirStream-System
- less chips remain inside of the machine
- less malfunctions due to chips
- reduction of suction power
- noise-reduced - combination of 4 different profiles and flush trimming cutting edge
- different profiles without tool change
Notes
- not for resharpening
- constant basic dimensions
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Chamfer∡ = Chamfer angle | 45 [°] | |
| R = Radius | 2,0 [mm] | |
| R1 = Radius 1 | 1.3 [mm] | |
| R2 = Radius 2 | 1.3 [mm] | |
| Ø D = Cutting circle diameter | 71 [mm] | |
| Ø D1 = Basis cutting circle diameter | 68 [mm] | |
| B = Cutting width | 8,0 [mm] | |
| b = Hub width | 12.5 [mm] | |
| Ø d = Bore diameter | 16 [mm] | |
| Z = No. of teeth | 2+2 | |
| DKN = Double keyway | 5x2,3 [mm] | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
| Machine/Type | HOLZ-HER FR701 Multi | |
|
Dimensions entered are not listed?
available from stock |
||
