DIAMAX Edge Rounding Cutters CM DP HSK 25R - flexClick - Homag

Product

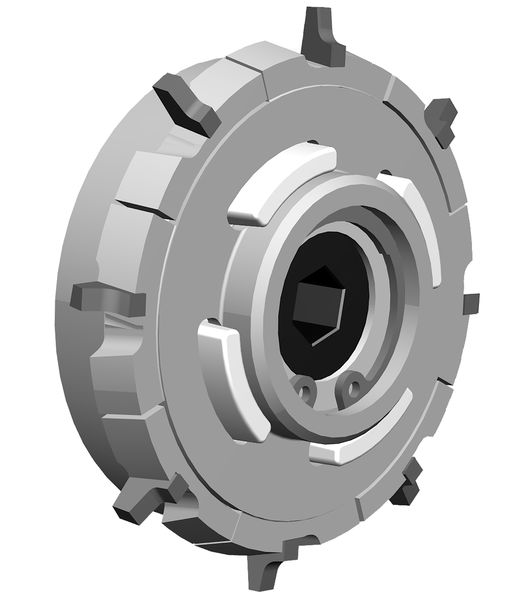

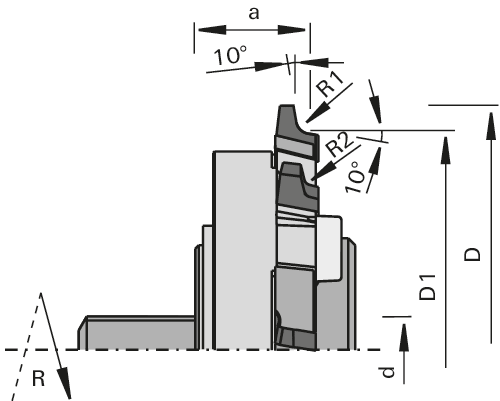

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • Homag edge banding machines for shaping units MF50, MF60
  • for rounding and / or chamfering of MDF boards and plastic edge bands

Design

  • 2-profile tool inclusive adjustment mechanics
  • polished face
  • high-finish clearance angle
  • with shear angle
  • runout angle 10°
  • n max=13,000 rpm

Advantages

  • combination of 2 different profiles
  • simple profile change possible without disassembling the tool
  • excellent cutting quality thanks to high radial running accuracy and precise tool balancing
  • optimized chip removal thanks to ChipMeister version

Notes

  • further combinations on request
  • constant basic dimensions a and D1
  • sense of rotation according to DIN-EN 50144

Table- and picture caption ...

R1
[mm]
R2
[mm]
Ø D
[mm]

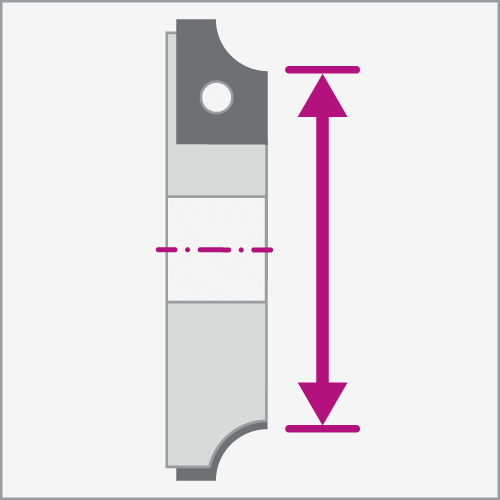

Ø D1
[mm]
a
[mm]
Ø d
[mm]
Z nmax
[min-1]
L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2 1 70 62 16.5 HSK 25R 4 13,000 L 186203
|
2 1 70 62 16.5 HSK 25R 4 13,000 R 186204
|
2 1.3 70 62 16.5 HSK 25R 4 13,000 L 186201
|
2 1.3 70 62 16.5 HSK 25R 4 13,000 R 186202
|
2 1.5 70 62 16.5 HSK 25R 4 13,000 L 186199
|
2 1.5 70 62 16.5 HSK 25R 4 13,000 R 186200
|
3 1.3 70 62 16.5 HSK 25R 4 13,000 L 186197
|
3 1.3 70 62 16.5 HSK 25R 4 13,000 R 186198
|
