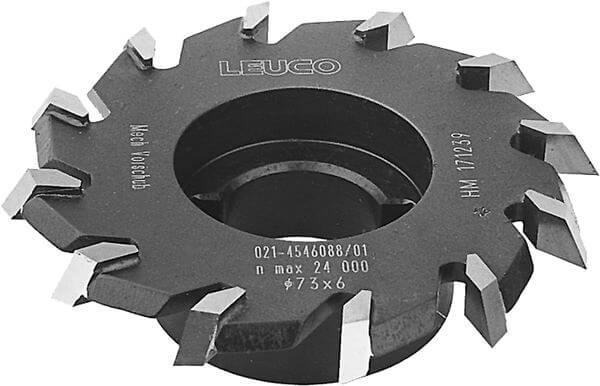

Edge Jointing Cutters HW - IMA

Product

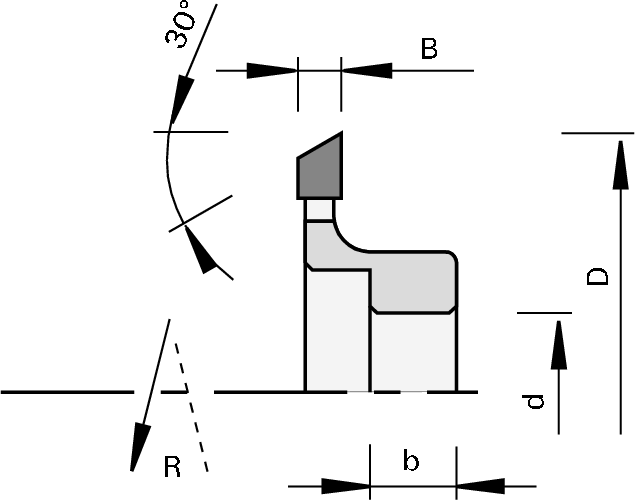

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • edge banding machines
  • for flush-cutting and chamfering of solid wood, veneer and plastic edge bands

Design

  • cutting edges parallel to cutter axis
  • n max = 18,000 min-1

Advantages

Notes

  • sense of rotation see drawing

Table- and picture caption ...

Chamfer∡
[°]
Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z DKN
[mm]
nmax
[min-1]
L/R Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

30 73 6,0 12 20 12 6x3,5 18,000 L IMA 171240
|
30 73 6,0 12 20 12 6x3,5 18,000 R IMA 171239
|
