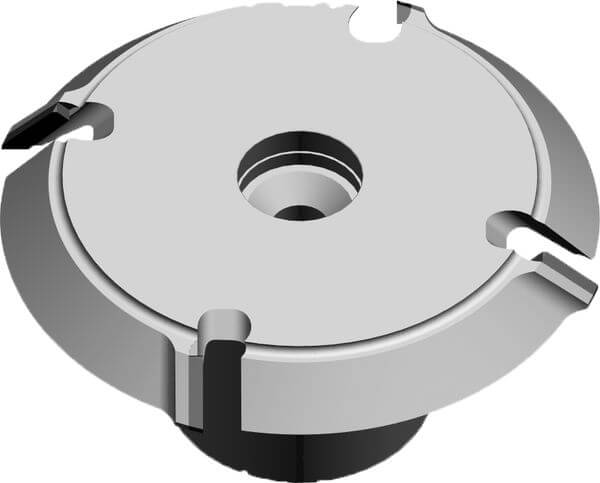

Edge Chamfering Cutters DP HSK 32 - Homag
Article
Description
Machine / Application
- edge banding machines Homag / FK-aggregates
- for chamfering of solid wood, veneer and plastic edge bands
Design
- polished face
- high-finish clearance angle
- with shear angle
Advantages
- optimum cutting quality thanks to high concenctric accuracy and precise tool balancing
- optimized chip removal thanks to internal chip evacuation
- less chips remain inside of the machine
- no malfunctions due to chips
- reduction of suction power
- noise reduced
Notes

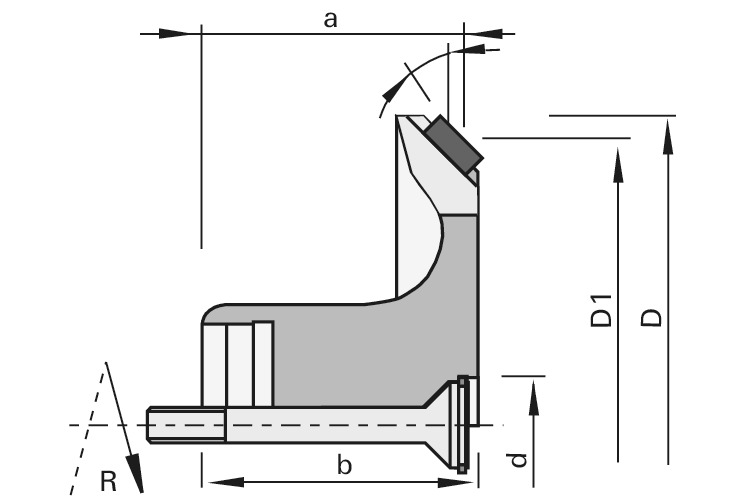

- constant basic dimensions a and D1
- attention: machines must be re-equipped accordingly
- sense of rotation according to VDMA 8849
Chamfer∡
[°] |
Ø D
[mm] |
Ø D1
[mm] |
a
[mm] |
b
[mm] |
Ø d
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||||
20 | 65.1 | 62,3 | 31.5 | 34 | HSK 32 | 4 | L | 180288 | ||
20 | 65.1 | 62,3 | 31.5 | 34 | HSK 32 | 4 | R | 180289 | ||
45 | 70 | 62,3 | 31.5 | 34 | HSK 32 | 4 | L | 180319 | ||
45 | 70 | 62,3 | 31.5 | 34 | HSK 32 | 4 | R | 180318 | ||
20 | 65.1 | 62,3 | 31.5 | 34 | HSK 32 | 6 | L | 180290 | ||
20 | 65.1 | 62,3 | 31.5 | 34 | HSK 32 | 6 | R | 180291 | ||
45 | 70 | 62,3 | 31.5 | 34 | HSK 32 | 6 | L | 180321 | ||
45 | 70 | 62,3 | 31.5 | 34 | HSK 32 | 6 | R | 180320 |
