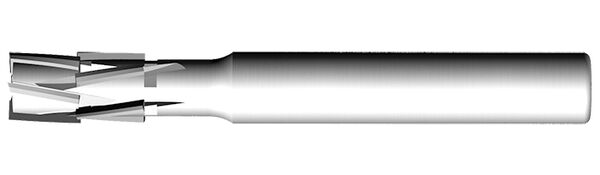

CM090 Multi-tooth DP compression milling cutters
Product

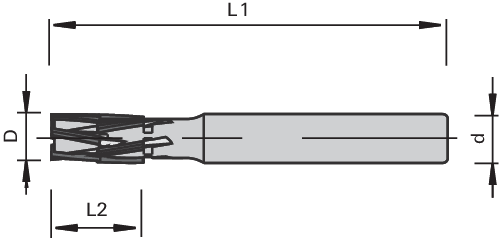

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- Optimal solution for top layers in honeycomb, sandwich or other panel materials which are difficult to process
Design
- Compression milling cutter for delamination-free cutting quality at the top and bottom edge
Advantages
- High feed rates thanks to a high number of teeth
- Very well suited for finishing
Notes
- Must be used in the middle of the component (adhere to the compression zone)
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | Helical direction |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 6 | 13 | 6,0 | 65 | 3+3 | positive | 10 | B | R | 186929 | ||
| 8 | 15 | 8,0 | 65 | 5+5 | positive | 10 | B | R | 186930 | ||
| 10 | 17 | 10 | 75 | 5+5 | positive | 10 | B | R | 187195 | ||
| 12 | 18 | 12 | 75 | 7+7 | positive | 10 | B | R | 187196 | ||
