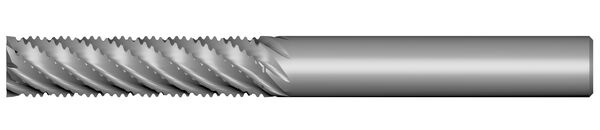

CM020 Honeycomb milling cutter VHW - DLC tipped
Product

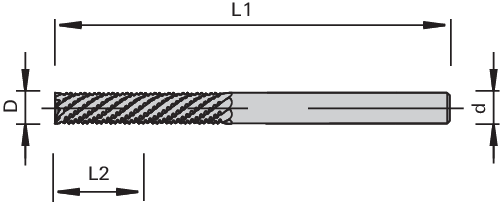

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- Suitable for sandwich laminates with CFRP/GFRP top layers and honeycomb core
Design
- Micrograin carbide with DLC coating
Advantages
- Extremely sharp cutting edges ensure a clean separation of the honeycomb core
- Suitable for top layer cutting and for dividing cuts
Notes
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 8 | 32 | 8 | 76.2 | 8 | A | R | 187840 | ||
| 6 | 32 | 6 | 76.2 | 8 | A | R | 187841 | ||
