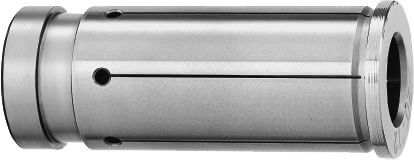

Universal Reducing Bushings, highly precise
Article
Description
Machine / Application
- for holding shank tools in TRIBOS, ps-System and all standard hydro expansion chuck
Design
- concentric accuracy ≤ 0.003 mm
- shank diameter tolerance h7 or g7
- coolant-tight up to 80 bar
Advantages
- permanent concentricity and tool-change repeat accuracy ≤ 0.003 mm
Notes

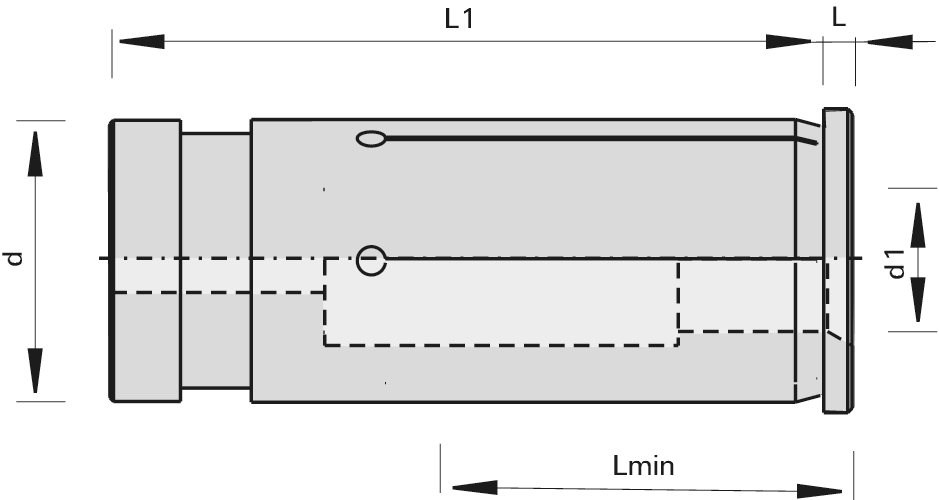

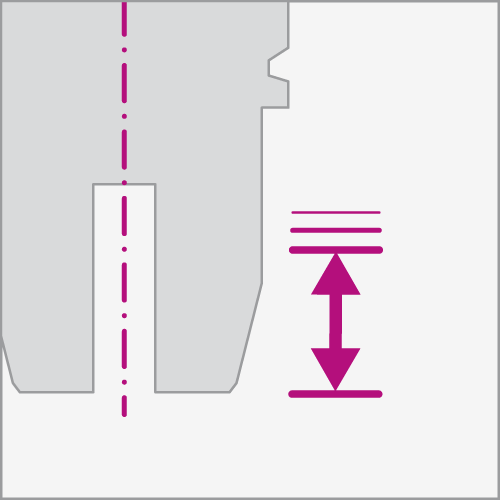

- Lmin minimum clamping length = minimum shaft length
Ø d1
[mm] |
Ø d1
[inch] |
L
[mm] |
Lmin
[mm] |
Ø d
[mm] |
L1
[mm] |
Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||
3 | 2 | 27 | 12 | 45 | 183022 | |||
4 | 2 | 27 | 12 | 45 | 183023 | |||
5 | 2 | 27 | 12 | 45 | 183024 | |||
6 | 2 | 27 | 12 | 45 | 183025 | |||
8 | 2 | 27 | 12 | 45 | 183026 | |||
8 | 2.5 | 27 | 16 | 47.5 | 186099 | |||
10 | 2.5 | 32 | 16 | 47.5 | 186100 | |||
12 | 2.5 | 37 | 16 | 47.5 | 186101 | |||
1/8 | 2 | 27 | 20 | 50.5 | 186914 | |||
3 | 2 | 27 | 20 | 50.5 | 183027 | |||
4 | 2 | 27 | 20 | 50.5 | 183028 | |||
5 | 2 | 27 | 20 | 50.5 | 183029 | |||
6 | 2 | 27 | 20 | 50.5 | 183030 | |||
8 | 2 | 27 | 20 | 50.5 | 183032 | |||
10 | 2 | 32 | 20 | 50.5 | 183034 | |||
12 | 2 | 37 | 20 | 50.5 | 183036 | |||
14 | 2 | 37 | 20 | 50.5 | 183038 | |||
16 | 2 | 38 | 20 | 50.5 | 183040 | |||
6 | 3 | 27 | 25 | 54.5 | 182304 | |||
8 | 3 | 27 | 25 | 54.5 | 182305 | |||
10 | 3 | 32 | 25 | 54.5 | 182306 | |||
12 | 3 | 37 | 25 | 54.5 | 182307 | |||
14 | 3 | 37 | 25 | 54.5 | 182308 | |||
16 | 3 | 38 | 25 | 54.5 | 182309 | |||
18 | 3 | 38 | 25 | 54.5 | 182310 | |||
20 | 3 | 42 | 25 | 54.5 | 182311 | |||
1/2" | 3 | 37 | 25 | 54.5 | 182653 | |||
3/4" | 3 | 42 | 25 | 54.5 | 182655 |
