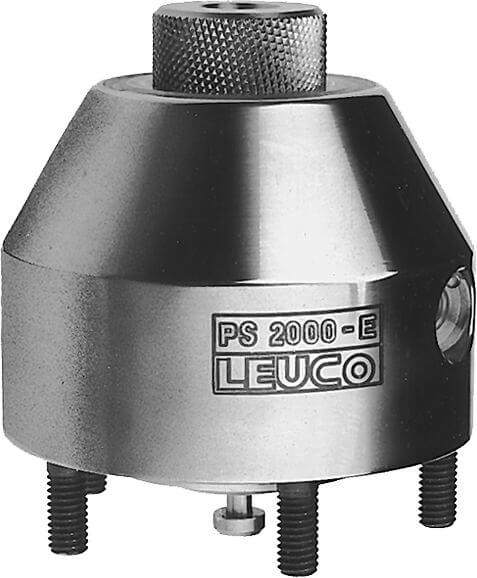

Hydro Clamping Chucks - tool directly attached by screws
Product

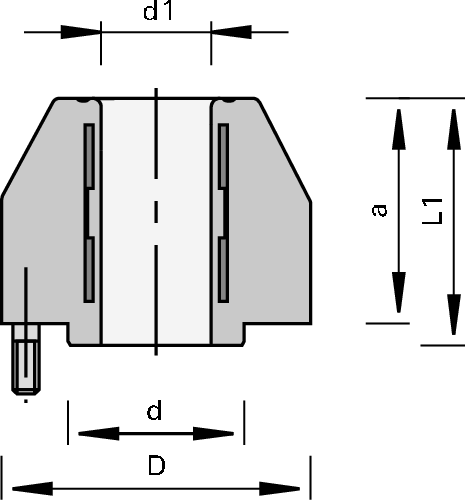

Drawing
Article
Description
Machine / Application
- for precise clamping of shank-type tools with cylindrical shank
Design
- n max = 25,000 min -1
Advantages
- optimum cutting quality and long tool life thanks to exact radial running accuracy
- minimization of setup-times thanks to easy and quick tool change
Notes
- for clockwise and counter-clockwise rotation
- integral part of machine spindle
- initial purchase through the machine manufacturers
- axial locking of the tools
|
Ø d1
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
a
[mm] |
Weight
[kg] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 25 | 40 | 70 | 56 | 51 | 1.327 | 173752 | ||
