Adapters with cylindrical shank - shank-type tools

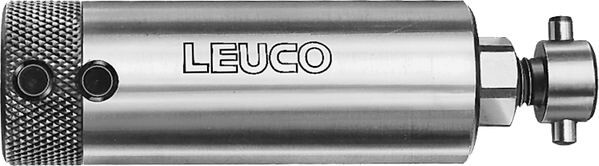

Product
Drawing
Article
Description
Machine / Application
- for mounting of shank-type tools in PS 2000-E for shank diameter 6 - 12 mm
Design
Advantages
Notes
- the tool shanks must feature a flat clamping area
- length adjusting screw Ident-No. 172921 is required for PS 2000-E
- without length adjusting screw for ps-System Ø 16 mm Ident-No. 172115, Ø 25 mm Ident-No. 172113
|
Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Weight
[kg] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||
| 8 | 20 | 16 | 61 | 0.1 | 172117 | ||
| 10 | 20 | 16 | 61 | 0.2 | 172119 | ||
| 6 | 20 | 25 | 70 | 0.27 | 172103 | ||
| 8 | 20 | 25 | 70 | 0.265 | 172104 | ||
| 10 | 20 | 25 | 70 | 0.25 | 172101 | ||
| 12 | 20 | 25 | 70 | 0.255 | 172102 | ||
