184359 - StarterKit SET1
Product
Drawing
Technical data
Description
Machine / Application
- for use in hydro expansion chuck on WEEKE BHX machines, expecially BHX 050/055 series
- for tools with shank diameter up to 1-16 mm
Design
- adapters with high-precision collet chucks, especially adapted to the hydro clamping system of the BHX milling spindle
- with internal lock nut
Advantages
- flexible, quick clamping
- low building height
- individual tool pre-setting outside of the machine is possible
- time saving tool changes
Notes
- for Weeke BHX machines grooving cutters HW "g5-System" are also available
- torque: 90 Nm (74 Lbf.ft)
| Feature | Value | |
|---|---|---|
| L = Delivery Status | ||

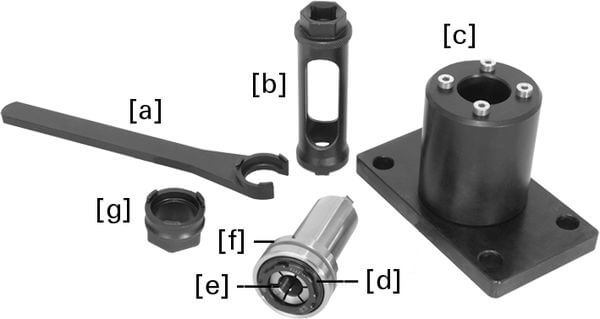

| Remarks | [d]+[f] 3 clamping adapter incl. lock nuts [e] 3 collet chucks (8, 10, 12 mm) [c] 1 mounting device [a] 1 hook wrench [g] 1 wrench |
|
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Collet Chucks | Ø1 L=57 | 184367 | |||
| Collet Chucks | Ø2 L=57 | 184368 | |||
| Collet Chucks | Ø3 L=57 | 184369 | |||
| Collet Chucks | Ø4 L=57 | 184370 | |||
| Collet Chucks | Ø5 L=57 | 184371 | |||
| Collet Chucks | Ø6 L=57 | 184372 | |||
| Clamping Nuts | M32x1,5 | 184378 | |||
| Collet Chucks | Ø16 L=57 | 184376 | |||
| Adapter incl. clamping nut | 184362 | ||||
| Mounting devices | 184363 | ||||
| Hook Wrenches | ØD=25, L=200 | 184364 | |||
| Wrench | ØD=30, SW27, H20 | 184365 | |||
| Collet Chucks | Ø10 L=57 | 184374 | |||
| Collet Chucks | Ø12 L=57 | 184375 | |||
| Collet Chucks | Ø8 L=57 | 184373 | |||
|
available from stock |
|||||
