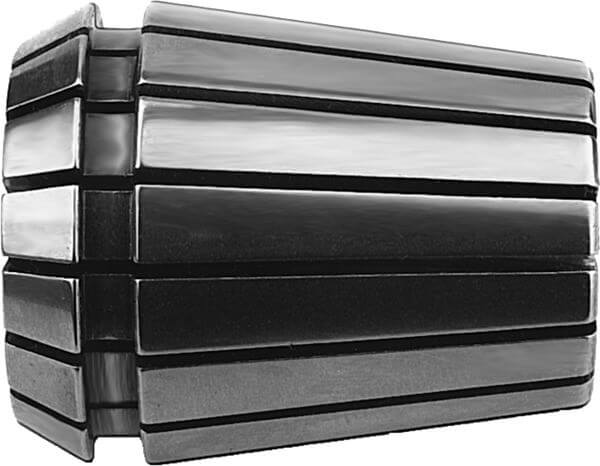

Precision collets - 462E/OZ25

Product

Drawing

Article

Description

Machine / Application

  • for use in draw-in collet chuck Type 462E/OZ25

Design

  • clamping tolerance 0.5 mm
  • according to DIN 6388 Type 462E/OZ25

Advantages

  • optimum transmission of clamping force thanks to 12 slots from top and bottom

Notes

Table- and picture caption ...

Ø d1
[mm] 		Ø d1
[inch] 		Ø D
[mm] 		Norm number L1
[mm] 		Dimension
[mm] 		Weight
[kg] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2 35.05 DIN 6388 462E/OZ25 52 0.2 183803
|
3 35.05 DIN 6388 462E/OZ25 52 0.2 183804
|
4 35.05 DIN 6388 462E/OZ25 52 0.2 183805
|
5 35.05 DIN 6388 462E/OZ25 52 0.2 183806
|
6 35.05 DIN 6388 462E/OZ25 52 0.2 180213
|
1/4" 35.05 DIN 6388 462E/OZ25 52 0.2 175815
|
7 35.05 DIN 6388 462E/OZ25 52 0.2 183807
|
8 35.05 DIN 6388 462E/OZ25 52 0.2 180358
|
3/8" 35.05 DIN 6388 462E/OZ25 52 0.2 185275
|
10 35.05 DIN 6388 462E/OZ25 52 10x52 0.22 170782
|
12 35.05 DIN 6388 462E/OZ25 52 0.22 168742
|
1/2" 35.05 DIN 6388 462E/OZ25 52 0.22 175820
|
13 35.05 DIN 6388 462E/OZ25 52 0.22 180215
|
14 35.05 DIN 6388 462E/OZ25 52 0.205 170783
|
5/8" 35.05 DIN 6388 462E/OZ25 52 0.195 175823
|
15 35.05 DIN 6388 462E/OZ25 52 0.2 183808
|
16 35.05 DIN 6388 462E/OZ25 52 16x52 0.195 168743
|
18 35.05 DIN 6388 462E/OZ25 52 0.2 180216
|
3/4" 35.05 DIN 6388 462E/OZ25 52 0.2 175826
|
20 35.05 DIN 6388 462E/OZ25 52 0.175 168744
|
25 35.05 DIN 6388 462E/OZ25 52 25x52 0.104 168745
|
