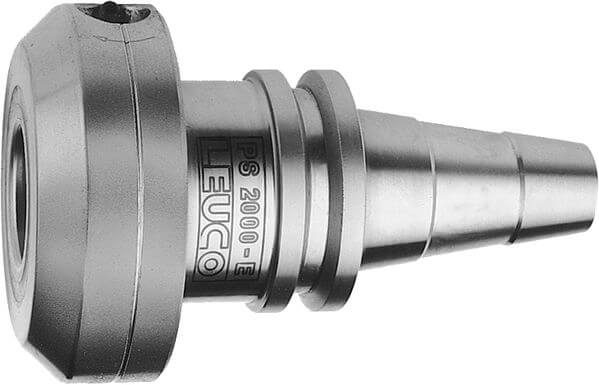

187756 - Hydro Clamping Chucks PS 2000-E - tool changer
Technical data
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for precise clamping of shank-type tools with cylindrical shank
Design
- n max = 25,000 min -1
- quick-release taper BT 30 and quick-release taper BT 35 with retaining bolt according to standard MAS 403
- quick-release taper SK 30 according to DIN ISO 7388 (without retaining bolt - must be ordered separately)
- quick-release taper SK 30 and SK 40 according to DIN ISO (with retaining bolt)
Advantages
- minimization of setup-times thanks to easy and quick tool change
- high cutting quality and long edge lives thanks to high concentricity
Notes
- for clockwise and counter-clockwise rotation
Feature | Value | |
---|---|---|
Ø d1 = Adapter size on the tool side (inch) | 3/8 [inch] | |
L2 = Effective length | 41 [mm] | |
Ø d = Adapter size on the machine side | SK 30 (DIN ISO) [mm] | |
Ø D = Diameter | 53 [mm] | |
Norm number = Norm number | DIN ISO 7388 | |
L1 = Total length | 110.6 [mm] | |
a = Distance to machine | 63 [mm] | |
Weight = Weight | 0.81 [kg] | |
L = Delivery Status | ||
Machine/Type | Without retaining bolts | |
Dimensions entered are not listed?
available from stock |
