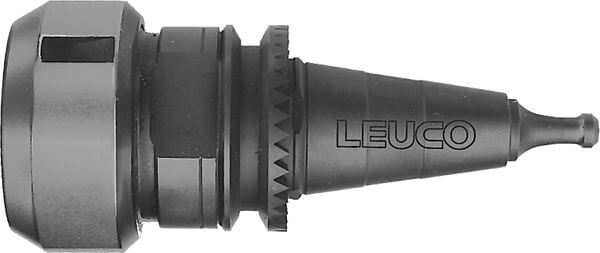

Draw-In Collet Chucks with SK shank with ring gear
Product

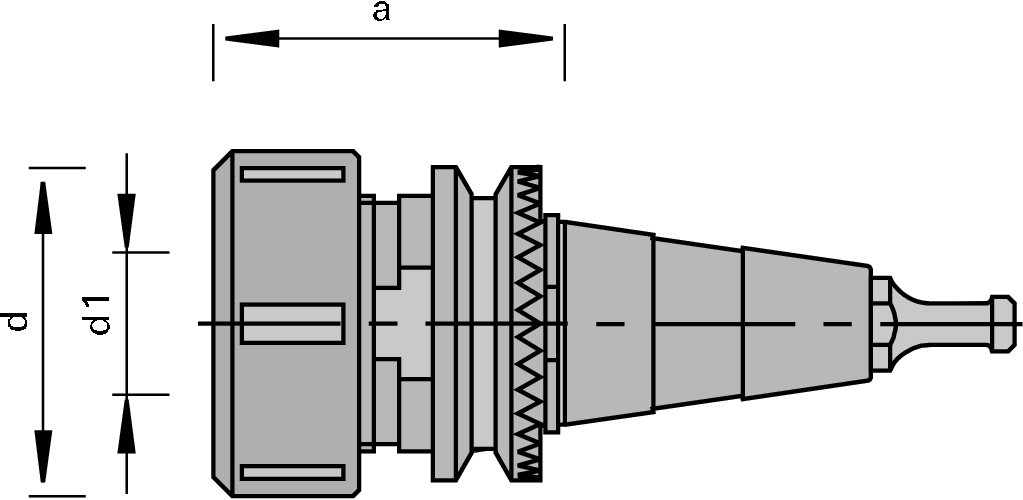

Drawing
Article
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for clamping of shank-type tools with cylindrical shank
Design
- quick-release taper according to SK 30 with ring gear
- lock nut with sleeve bearing
Advantages
- minimization of setup-times thanks to easy and quick tool change
- high cutting quality and long edge lives thanks to high concentricity
Notes
- for clockwise and counter-clockwise rotation
- replaceble retaining bolt
- collet chucks according to Type 462E/OZ25 Ø 4..25 mm
- collet chucks according to Type 470E/ER32 Ø 2..20 mm
- included in delivery:collet chuck, clamping nut and retaining bolt
|
Ø d1
[mm] |
Ø d
[mm] |
Ø D
[mm] |
Norm number |
a
[mm] |
Type |
Weight
[kg] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 2-20 | SK 30 | 50 | 55 | 470E/ER32 | 0.633 | SCM, Morbidelli | 173644 | |||
| 4-25 | SK 30 | 60 | ISO 7388/3 | 72 | 462E/OZ25 | 1.4 | SCM, Morbidelli | 175792 | ||
