Draw-In Collet Chucks with SK shank - Biesse, CMS
Product
Drawing
Article
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for clamping of shank-type tools with cylindrical shank
Design
- quick-release taper according to DIN ISO 7388 (without dog and locating grooves)
- lock nut with sleeve bearing
Advantages
- minimization of setup-times thanks to easy and quick tool change
- high cutting quality and long edge lives thanks to high concentricity
Notes
- for clockwise and counter-clockwise rotation
- collet chucks according to Type 470E/ER32 Ø 2..20 mm
- collet chucks according to Type 472E/ER40 Ø 4..25 mm
- included in delivery:collet chuck, clamping nut and retaining bolt (Biesse 173641)
|
Ø d1
[mm] |
Ø d
[mm] |
Ø D
[mm] |
Ø D1
[mm] |
Norm number |
a
[mm] |
Type |
Weight
[kg] |
Machine/Type | Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 2-20 | SK 30 (DIN ISO) | 50 | 50 | DIN 69271 | 50 | 470E/ER32 | 0.9 | Biesse | 173639 | |||

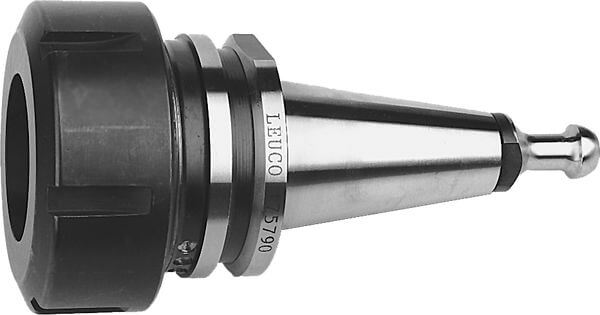

| 4-25 | SK 30 (DIN ISO) | 63 | 50 | DIN 69871 | 57 | 472E/ER40 | 0.9 | Biesse | 175790 | |||
| 4-25 | SK 30 (DIN ISO) | 63 | 46 | ISO | 64 | 472E/ER40 | 1 | CMS | SW 41 | 180361 | ||
