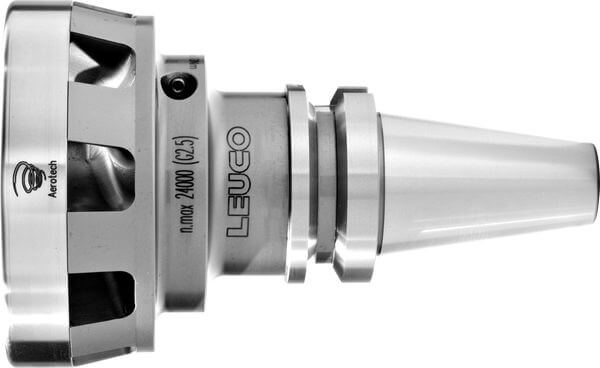

185153 - AEROTECH-System with SK30 (DIN) with hydro expansion clamping
Product
Drawing
Technical data
Description
Machine / Application
- CNC machining centers
- for clamping of shank-type tools and simultaneous chip guide when working
- for grooving, rabbeting in the case of pocket milling and dividing cuts as well as for the optimization of production processs e.g. with Nesting applications
Design
- monolithic tool clamping system
- 9 wing design for the machining of particle board, MDF, OSB, hard wood etc.
- tool mounting by means of hydro expansion clamping technology
- balance quality G<2,5
Advantages
- stopping of the chip flow
- cooling of the tool
- reduction of the dust quantity
- reduced efforts for cleaning and maintenance
- minimization of setup-times thanks to easy and quick tool change with hydro expansion clamping
- high cutting quality and long edge lives thanks to high concentricity
- optimum torque transfer
Notes
- sufficient vacuum performance is necessary
- pressurization via hexagonal screwdriver (included in delivery)
- delivery with retaining bolts for Biesse Ident-No. 173641
- retaining boltt Ident-No. 169293 for IMA, Maka, Reichenbacher and Weeke must be ordered separately
- please observe the information in the Operating Instructions

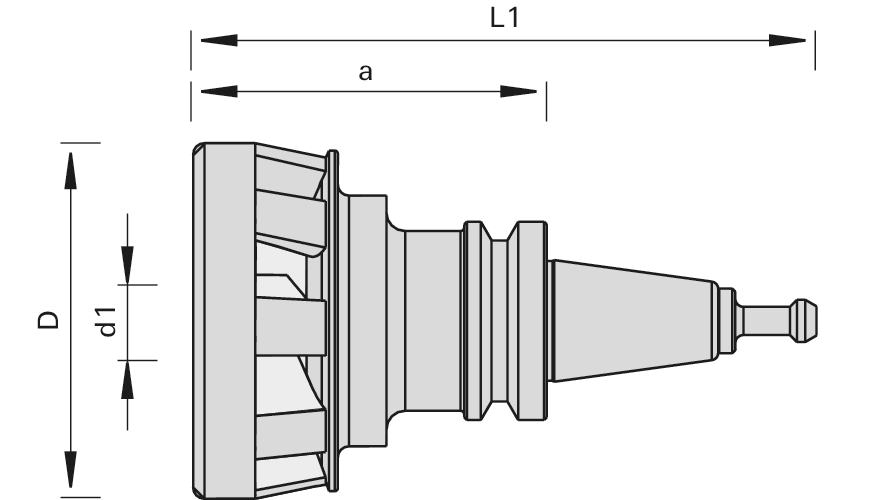

| Feature | Value | |
|---|---|---|
| Ø d1 = Adapter size on the tool side | 20 [mm] | |
| Ø d = Adapter size on the machine side | SK 30 (DIN ISO) [mm] | |
| Ø D = Diameter | 95 [mm] | |
| L1 = Total length | 143.2 [mm] | |
| a = Distance to machine | 92.2 [mm] | |
| L = Delivery Status | ||
| Remarks | 9 wings | |
|
Dimensions entered are not listed?
available from stock |
||
