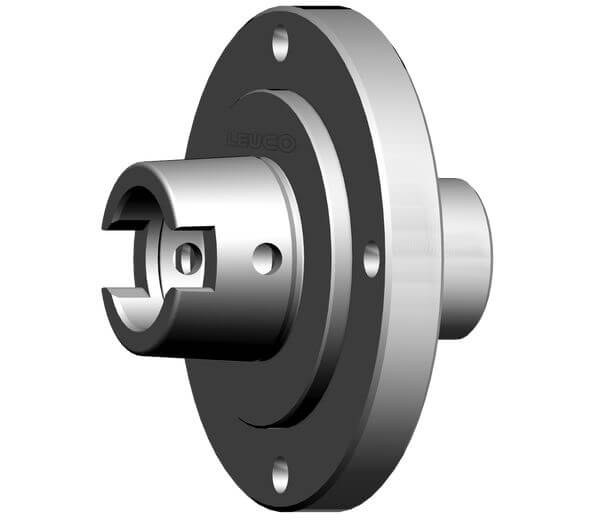

Mounting Arbors HSK 63F modified - without gripper groove
Article
Description
Machine / Application
- through-feed machines with tool changer Homag
- d1=30 mm especially for Homag and IMA jointing aggregates
- d1=60 mm especially for flooring manufacturing
- for precise clamping of tools with bore
Design
- interface DIN 69893 HSK 63 F modified for highly precise mounting on the machine spindle
Advantages
- quick tool change
- maintenance-free
Notes
- for clockwise and counter-clockwise rotation

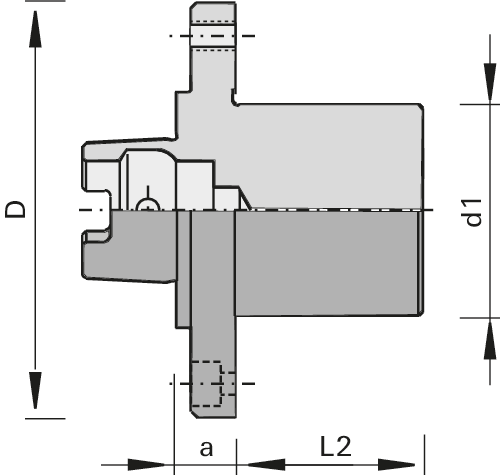

Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
Norm number |
a
[mm] |

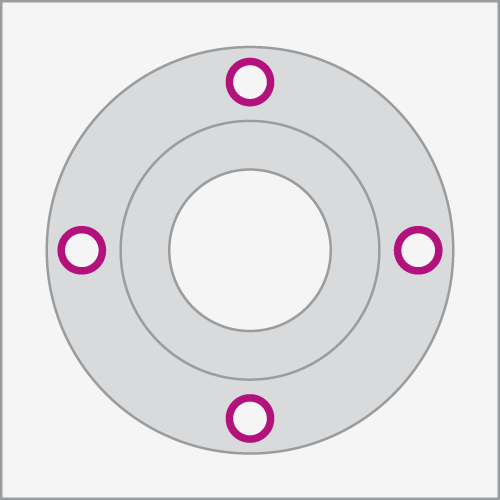

NL | Remarks | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||||
30 | 25 | HSK 63F | 94 | DIN 69893 | 16 | 4/M8/80 | furniture | 184787 | ||
60 | 68 | HSK 63F | 120 | DIN 69893 | 20 | 4/M8/100 + 4/9/100 | Flooring | 183616 |
