182124 - Mounting Arbors HSK 63F modified - 35 DKN, with lid and screws
Product

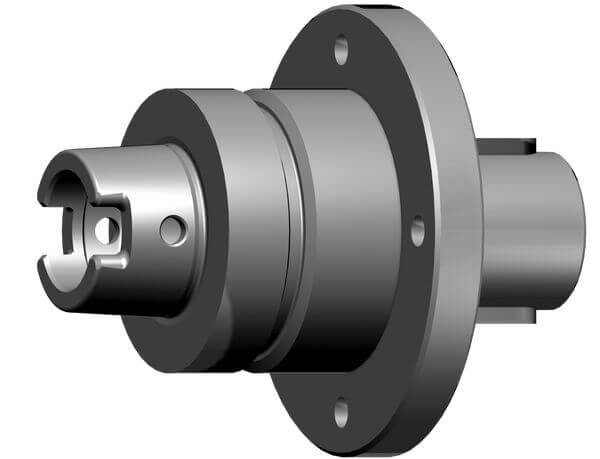

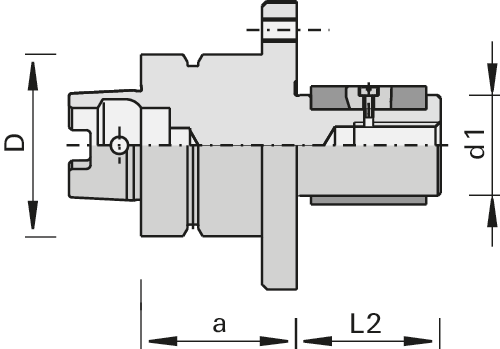

Drawing
Technical data
Description
Machine / Application
- through-feed machines with tool changer Homag
- for precise clamping of tools with bore
Design
- with pulling grooves
- flange with fastening screw thread
- interface DIN 69893 HSK 63 F for highly precise mounting on the machine spindle
Advantages
- quick tool change
Notes
- for clockwise and counter-clockwise rotation
| Feature | Value | |
|---|---|---|
| Ø d1 = Adapter size on the tool side | 35 [mm] | |
| L2 = Effective length | 50 [mm] | |
| Ø d = Adapter size on the machine side | HSK 63F [mm] | |
| Ø D = Diameter | 63 [mm] | |
| Norm number = Norm number | DIN 69893 | |
| a = Distance to machine | 54 [mm] | |
| NL = Pin holes | 8/M8/80 | |
| L = Delivery Status | ||
|
