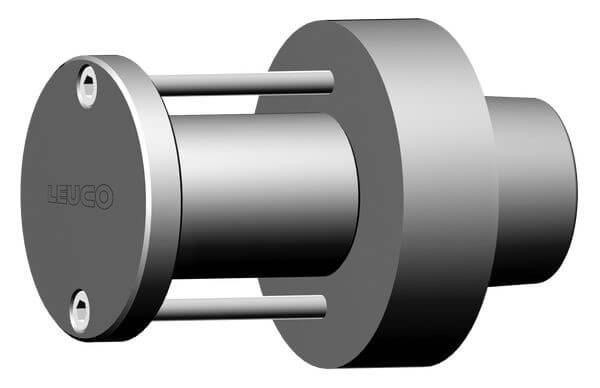

Hydro Tensile Spindles Weinig HSK - clamping length 40-55 mm

Product

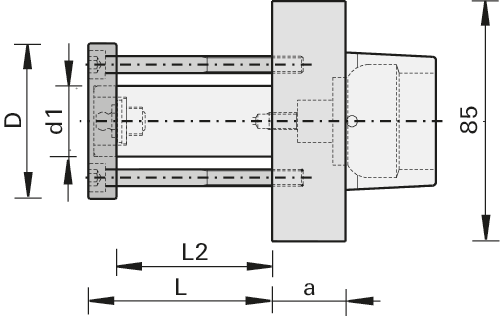

Drawing

Article

Description

Machine / Application

  • planing machines Weinig Powermat
  • for precise clamping of tools with bore

Design

  • with hydro-tensile spindle
  • n max = 6,000 min-1

Advantages

  • precise mounting of tools with bore thanks to hydro-tensile spindle

Notes

  • for clockwise and counter-clockwise rotation
  • accessories: dummy piece for covering the HSK-interface on spindles not used

Table- and picture caption ...

Ø d1
[mm] 		L2
[mm] 		Ø d
[mm] 		Ø D
[mm] 		a
[mm] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

30 40 Weinig HSK 85 26 181872
|
30 55 Weinig HSK 85 26 181873
|
40 55 Weinig HSK 85 26 181874
|
