TRIBOS extensions
Article
Description
Machine / Application
- for mounting of shank-type tools with cylindrical shank in Sino, TRIBOS, PS 2000-E
Design
- shank diameter tolerance h7 or g7
Advantages
Notes
- minimum clamping length = L2
- clamping and unclamping of the tools with TRIBOS clamping device

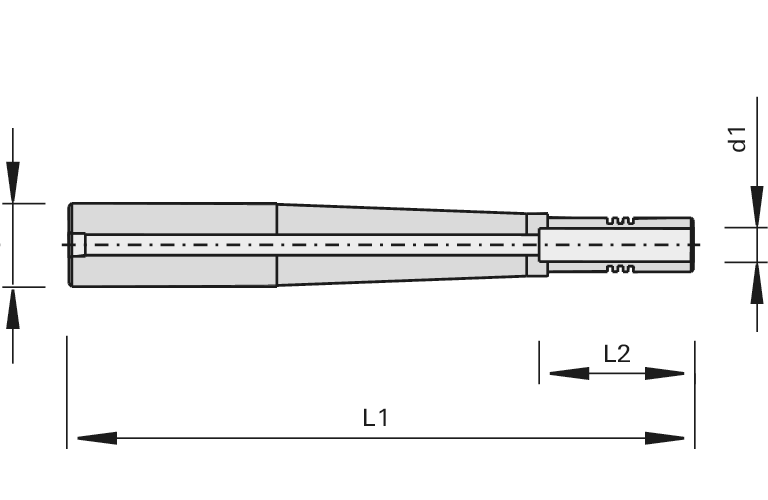

Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||
6 | 27 | 20 | 100 | 182800 | ||
8 | 27 | 20 | 100 | 182801 | ||
10 | 32 | 20 | 100 | 182802 | ||
12 | 37 | 20 | 100 | 182803 | ||
6 | 27 | 20 | 150 | 182804 | ||
8 | 27 | 20 | 150 | 182805 | ||
10 | 32 | 20 | 150 | 182806 | ||
12 | 37 | 20 | 150 | 182807 | ||
6 | 27 | 20 | 250 | 182808 | ||
8 | 27 | 20 | 250 | 182809 | ||
10 | 32 | 20 | 250 | 182810 | ||
12 | 37 | 20 | 250 | 182811 |
