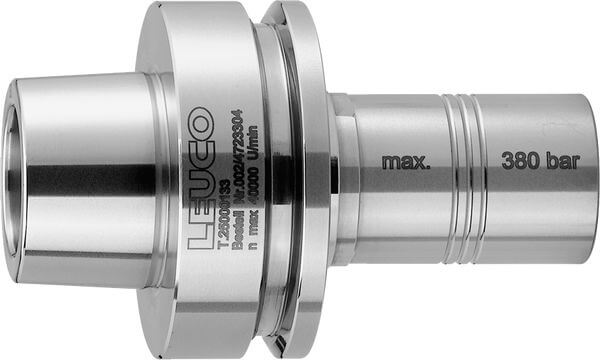

TRIBOS Power Shrink Chucks
Article
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for precise clamping of shank-type tools with cylindrical shank
Design
- n max = 40,000 min-1
Advantages
- low weight is easy on machine bearing
- suitable for high RPM´s
- optimum chip extraction thanks to slim design
- increased process safety, long edge lives and high machining quality thanks to very high concentricity and repeating accuracy (< 0.003 mm)
Notes
- for right- and lefthand rotation
- different diameters upon request
- allowed projection: 4 x d1
- clamping of the tools by means of the clamping device
- can also be done at LEUCO upon request
- TRIBOS chuck with reinforced design especially for heavy roughing can be delivered upon request
- delivery without retaining bolts; please choose retaining bolts according to the machine (see page with retaining bolts)

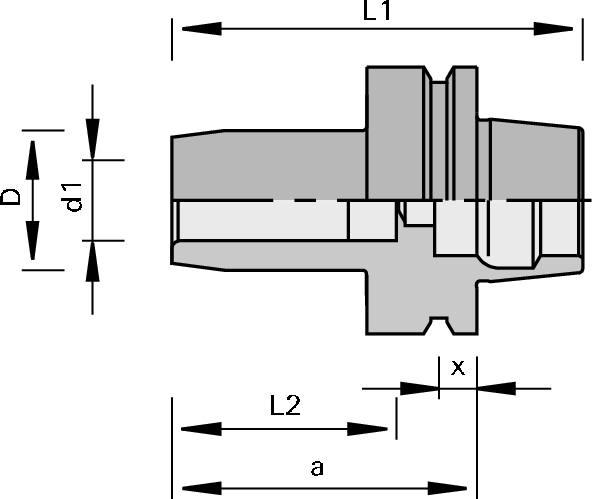

Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
a
[mm] |
x
[mm] |
Weight
[kg] |
Remarks | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
|||||||||||
12 | 48,5 | HSK 63F | 19 | 100 | 75 | 18 | 0.69 | 180257 | |||
16 | 48,5 | HSK 63F | 26 | 100 | 75 | 18 | 0.74 | 180899 | |||
20 | 52,9 | HSK 63F | 30 | 100 | 75 | 18 | 0.77 | x=18 mm | 180258 | ||
25 | 55 | HSK 63F | 35 | 100 | 75 | 18 | 0.79 | x=18 mm | 180710 | ||
20 | 55 | SK 30 (DIN) | 30 | 127 | 80 | 180888 | |||||
25 | 55 | SK 30 (DIN) | 35 | 127 | 80 | 180836 |
