Hydro Clamping Chuck ps-System with HSK 63F

Product

Drawing

Article

Description

Machine / Application

  • CNC machining centers with automatic tool changer
  • for precise clamping of shank-type tools with cylindrical shank

Design

  • n max = 30,000 min -1
  • interface DIN 69893 HSK 63 F

Advantages

  • minimization of setup-times thanks to easy and quick tool change
  • high cutting quality and long edge lives thanks to high concentricity
  • optimum torque transfer

Notes

  • for right- and lefthand rotation
  • with bore for installation of micro chips for electronic tool detection
  • x = pressurization by means of screwdriver
  • hexagonal screwdriver is not included in delivery
  • Lmin minimum clamping length = minimum shaft length

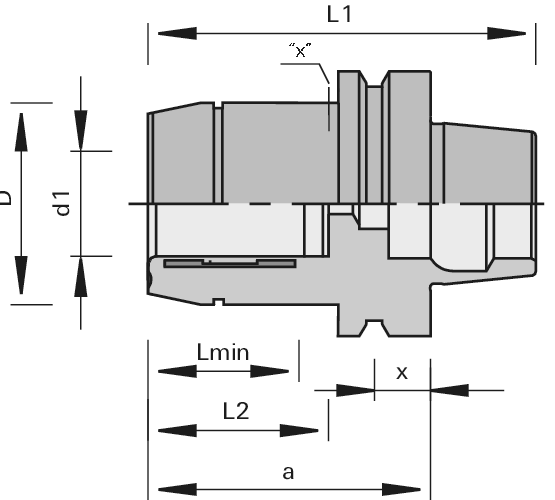

Table- and picture caption ...

Ø d1
[mm] 		Ø d1
[inch] 		L2
[mm] 		Lmin
[mm] 		Ø d
[mm] 		Ø D
[mm] 		Norm number L1
[mm] 		a
[mm] 		x
[mm] 		Dimension
[mm] 		Weight
[kg] 		Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

10 41 31 HSK 63F 30 DIN 69893 105 80 18 1.2 x=18 mm 184725
|
12 46 36 HSK 63F 32 DIN 69893 105 80 18 1.16 x=18 mm 184306
|
16 49 39 HSK 63F 38 DIN 69893 105 80 18 1.2 x=18 mm 184307
|
20 51 41 HSK 63F 52.5 DIN 69893 105 80 18 1.3 x=18 mm 184308
|
25 57 47 HSK 63F 52.5 DIN 69893 109 84 18 HSK 63Fx25x109 1.28 x=18 mm 184309
|
3/8" 41 31 HSK 63F 30 DIN 69893 105 80 18 1.2 x=18 mm 184724
|
1/2" 47,5 36 HSK 63F 32 DIN 69893 105 80 18 1.2 x=18 mm 184726
|
