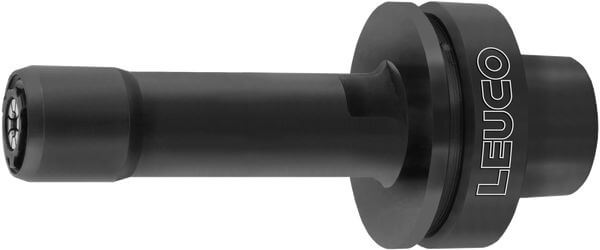

Draw-in collet chuck system 426E/ER16 with HSK 63F - clamping zone Ø 1-10 mm
Product

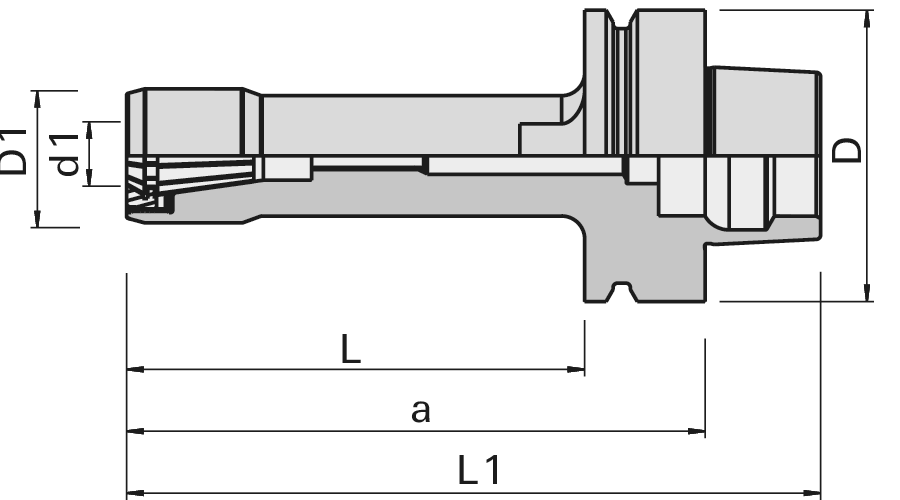

Drawing
Article
Description
Machine / Application
- CNC machining centers, especially 5-axis
- for precise clamping of shank-type tools with cylindrical shank
Design
- internal collet nut
- hardened and ground
- for double-slotted collets
- n max = 24,000 min-1
Advantages
- slim design
- high stability even with large projection
- high concentric accuracy
- high clamping force
Notes
- also available for left-hand sense of rotation
- included in delivery: collet chuck with clamping nut, without collet and mounting accessories
- torques: 426E/ER16: 50 Nm (44 Lbf.ft)
|
Ø d1
[mm] |
L
[mm] |
Ø d
[mm] |
Ø D
[mm] |
Ø D1
[mm] |
L1
[mm] |
a
[mm] |
x
[mm] |
Type | Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 1-10 | 50 | HSK 63F | 63 | 29 | 101 | 76 | 18 | 426E/ER16 | x=18 mm | 184847 | ||
| 1-10 | 74 | HSK 63F | 63 | 29 | 125 | 100 | 18 | 426E/ER16 | x=18 mm | 184848 | ||
| 1-10 | 99 | HSK 63F | 63 | 29 | 150 | 125 | 18 | 426E/ER16 | x=18 mm | 184849 | ||
| 1-10 | 124 | HSK 63F | 63 | 29 | 175 | 150 | 18 | 426E/ER16 | x=18 mm | 184850 | ||
