Draw-In Collet Chucks with HSK shank

Product

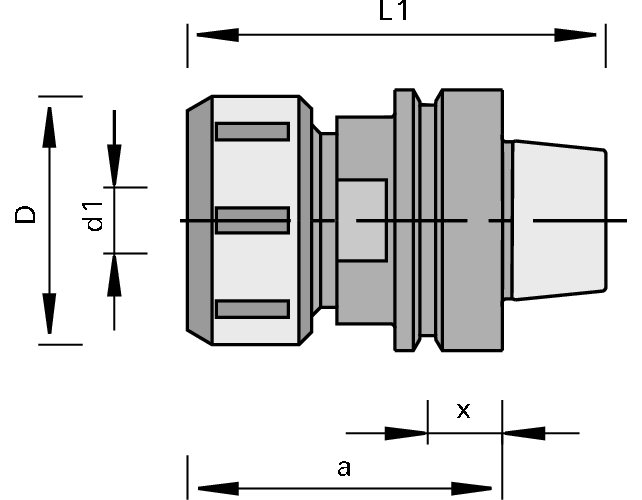

Drawing

Article

Description

Machine / Application

  • CNC machining centers with automatic tool changer
  • Use on joinery machines
  • for precise clamping of shank-type tools with cylindrical shank

Design

  • interface according to DIN 69893 HSK 50F, HSK 63F, HSK 63E, HSK 80A, HSK 80C, HSK 80E, HSK 80F and HSK 100A
  • lock nut with sleeve bearing

Advantages

  • flexible utilization by collet chucks

Notes

  • for right- and lefthand rotation
  • Ident-No. 175795 for IMA (up to 12/94) similar to DIN 69893
  • Ø d1 = collet chuck diameter 2 - 25 mm and 3 - 30 mm
  • collet chucks according to DIN 6388: 1) type 462E/OZ25/ 2) type 472E/ER40
  • included in delivery: collet chuck, clamping nut without spanner wrench
  • attention: different interfaces in case of CMS machines, according to spindle performance (KW)

Table- and picture caption ...

Ø d1
[mm]
Ø d
[mm]
Ø D
[mm]
Norm number L1
[mm]
a
[mm]
x
[mm]
Dimension
[mm]
Type Weight
[kg]
Machine/Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2-25 HSK 63F 60 DIN 69893 101 76 18 HSK 63Fx2-25 1 1.45 Homag, IMA from 01/95, Weeke from 03/98, HOLZ-HER, SCM, CMS (12+15 KW) x=18mm 173293
|
3-30 HSK 63E 63 DIN 69893 103 78 18 2 1.45 CMS (18 KW), joinery machines by Weinmann and Hundegger x=18 mm 180359
|
2-25 HSK 63F 60 DIN 69893 101 76 9 1 1.192 IMA up to 12/94 x=9mm 175795
|
2-25 HSK 63F 60 DIN 69893 140 115 18 1 Homag, IMA from 01/95, Weeke from 03/98, HOLZ-HER, CMS (12+15 KW) x=18 mm 179170
|
3-30 HSK 80A 80 DIN 69893 110 85 18 2 1.439 Joinery machines by Weinmann and Hundegger x=18 mm 80480510
|
3-30 HSK 80C 80 DIN 69893 101 76 18 2 1.17 Joinery machines by Weinmann and Hundegger x=18 mm 80480509
|
3-30 HSK 80E 80 DIN 69893 101 76 18 2 1.391 Joinery machines by Weinmann and Hundegger x=18 mm 80480508
|
3-30 HSK 80F 80 DIN 69893 93 76 18 2 1.294 Joinery machines by Weinmann and Hundegger x=18 mm 80480507
|
3-30 HSK 100A 100 DIN 69893 120 85 18 2 2.334 Joinery machines by Weinmann and Hundegger x=18 mm 80480511
|
