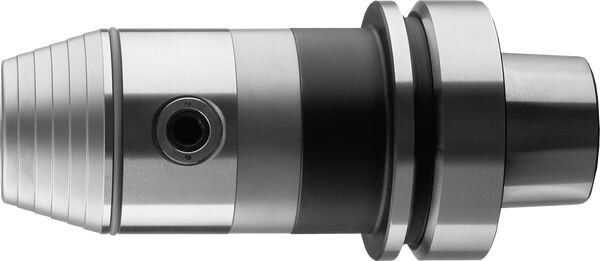

Universal Drill Chucks
Product
Drawing
Article
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for clamping of drill bits with cylindrical shank
Design
- continuously adjustable clamping area between 1-13 mm
- n max = 8,000 min-1
- hardened clamping jaws
Advantages
- fine balance is easy on spindle and spindle bearing
- high clamping accuracy over total lifetime of drill chuck thanks to hardened clamping jaws
- high holding moment
- no chips and dirt in the clamping zone thanks to special clamping jaws
Notes
- for clockwise and counter-clockwise rotation
- included in delivery: clamping key, retaining bolts
|
Ø d1
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||
| 1-13 | SK 30 (DIN) | 50 | 90 | Weeke, Maka, Reichenbacher | 180375 | ||
| 1-13 | SK 30 | 50 | 90 | Biesse from 9/92, Masterwood (HSD motors) | 180376 | ||
| 1-13 | SK 30 | 50 | 90 | Alberti, Masterwood (Colombo motors) | 180377 | ||
| 1-13 | SK 30 | 50 | 90 | Morbidelli, SCM (with ring gear) | 180378 | ||
| 1-13 | SK 40 (DIN) | 50 | 90 | Maka, Reichenbacher Stegherr | 180379 | ||
| 3-16 | SK 40 (DIN) | 57 | 90 | Maka, Reichenbacher Stegherr | 180380 | ||
| 1-13 | HSK 63F | 50 | 97 | Homag, EIMA, Weeke, IMA from 9/94 | 187039 | ||
| 2-16 | HSK 63F | 57 | 102 | Homag, EIMA, Weeke, IMA from 9/94 | 187040 | ||
