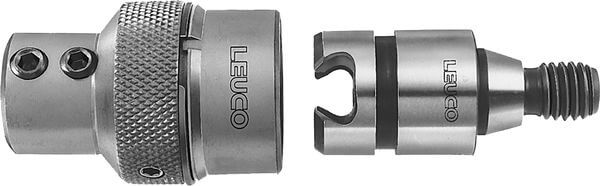

Klack Quick-Changing Chucks with hole pitch 32 mm

Product

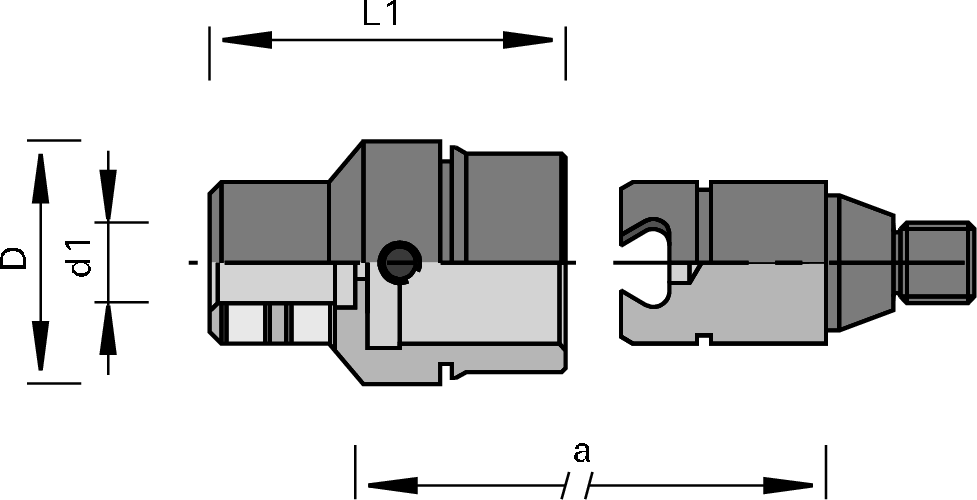

Drawing

Article

Description

Machine / Application

  • boring machines
  • for mounting of drill bits with cylindrical shank and clamping surface

Design

  • for mounting of drill bits with cylindrical shank and clamping surface

Advantages

  • low downtimes thanks to fast drill bit changes

Notes

  • for larger hole pitch widths (32 mm)
  • top part is drill bit seat
  • bottom part to install on the machine spindle
  • for threaded shank design and appropriate machines see technical information

Table- and picture caption ...

Ø d1
[mm] 		Ø D
[mm] 		L1
[mm] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

10 30 44 003567
|
