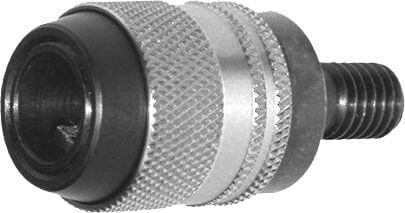

Drill Bit Quick-Changing Systems
Product
Drawing
Article
Description
Machine / Application
- boring machines
- CNC machining centers
- for mounting of drill bits with cylindrical shank and clamping surface
Design
Advantages
- low downtimes thanks to fast drill bit changes
- no special adjusting screw necessary
- for all common drill bits with shank Ø 10 mm and boring Ø < 20 mm
Notes
- for threaded shank design and appropriate machines see Technical Information
|

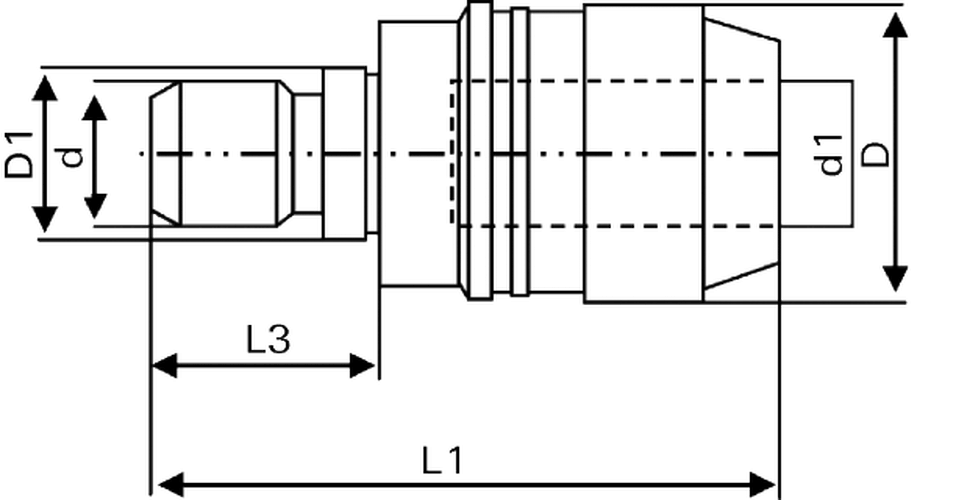

Ø d1
[mm] |
Ø d
[mm] |
Ø D
[mm] |
Ø D1
[mm] |
L1
[mm] |
L3
[mm] |
Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 10 | M8 | 20 | 9 | 42 | 15 | C | 182395 | ||
| 10 | M8 | 20 | 9 | 42 | 15 | C | 182396 | ||
| 10 | M8 | 20 | 42 | 15 | A | 182397 | |||
| 10 | M8 | 20 | 42 | 15 | A | 182398 | |||
| 10 | 10 | 20 | 45 | 18 | 182399 | ||||
| 10 | 10 | 20 | 45 | 18 | 182400 | ||||
| 10 | M10 | 20 | 11 | 42 | 15 | D | 182401 | ||
| 10 | M10 | 20 | 11 | 42 | 15 | D | 182402 | ||
| 10 | M10 | 20 | 42 | 15 | B | 182403 | |||
| 10 | M10 | 20 | 42 | 15 | B | 182404 | |||
