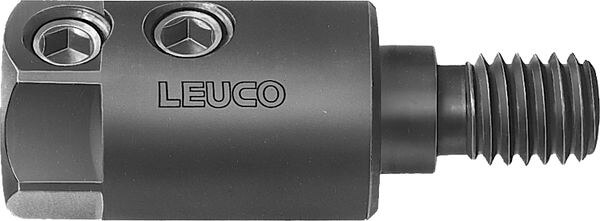

Clamping Chuck Combi Systems

clamping chucks with "BSS" mark are compatible with quick-changing system for drill bits
for threaded shank design and appropriate machines see Technical Information

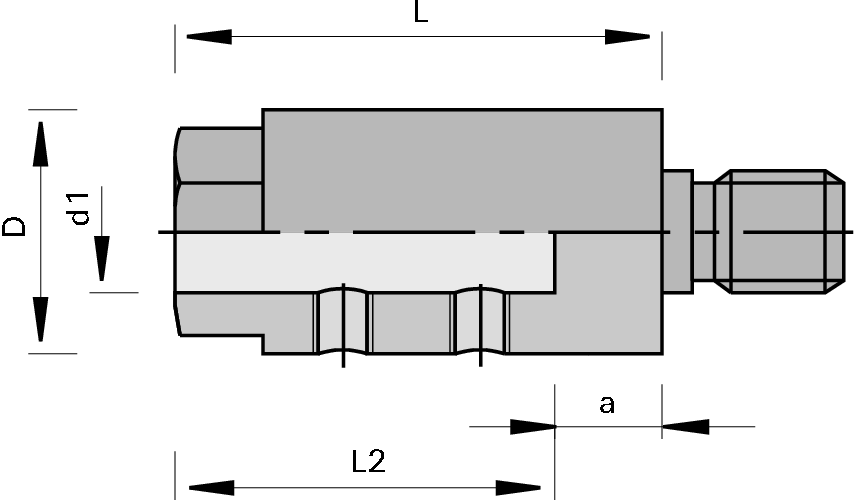

	Ø d1 [mm]	L2 [mm]	L [mm]	Ø D [mm]	a [mm]	Type	Remarks	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	8	20	22	15	2	D		161282	\|
	8	20	22	15	2	D		161281	\|
	8	20	24.5	15	4.5	A		010683	\|
	8	20	24.5	15	4.5	A		010677	\|
	8	20	24.5	15	4.5	B		161285	\|
	8	20	24.5	15	4.5	B		161284	\|
	8	20	24.5	15	4.5	C		058412	\|
	8	20	24.5	15	4.5	C		058411	\|
	8	20	37	15	17	C		059300	\|
	8	20	37	15	17	C		059299	\|
	10	20	24.5	19	4.5	A		003575	\|
	10	20	24.5	19	4.5	A		003574	\|
	10	20	24.5	19	4.5	B		008003	\|
	10	20	24.5	19	4.5	B		008002	\|
	10	20	24.5	19	4.5	C		058414	\|
	10	20	24.5	19	4.5	C		058413	\|
	10	20	25	19	5	D		003571	\|
	10	20	25	19	5	D		003570	\|
	10	20	25	19	5		cyl. shank Ø 10x30	183055	\|
	10	20	47	19	27	G		161287	\|
	10	20	47	19	27	G		161286	\|
	10	20	29.3	19	9.3	F		003573	\|
	10	20	29.3	19	9.3	F		003572	\|
	10	20	28.5	19	8.5	E		161987	\|
	10	20	28.5	19	8.5	E		161283	\|
	10	20	37	19	17	C		161681	\|
	10	20	37	19	17	C		161680	\|
	10	20	47	19	27	D	BSS	170372	\|
	10	20	47	19	27	D	BSS	170371	\|
