Adapters for micro twist drills

Product

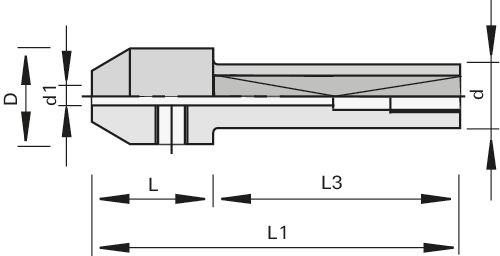

Drawing

Article

Description

Machine / Application

  • for holding micro twist drills with a shank diameter of 3.175 mm

Design

  • shank with clamping surface and length adjusting screw M5x10

Advantages

Notes

  • adjusting and attachment screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately

Table- and picture caption ...

Ø d1
[mm]
L
[mm]
Ø d
[mm]
Ø D
[mm]
L1
[mm]
L3
[mm]
Dimension
[mm]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

3,175 19 10 15 52 33 Ø3,175x52xØ10 186165
|
