Adapters
Product

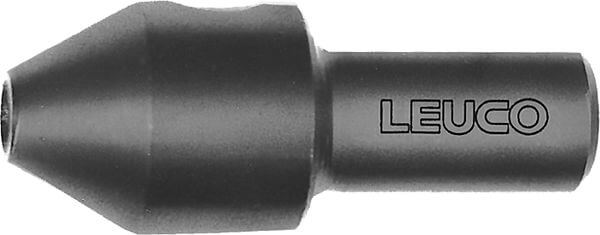

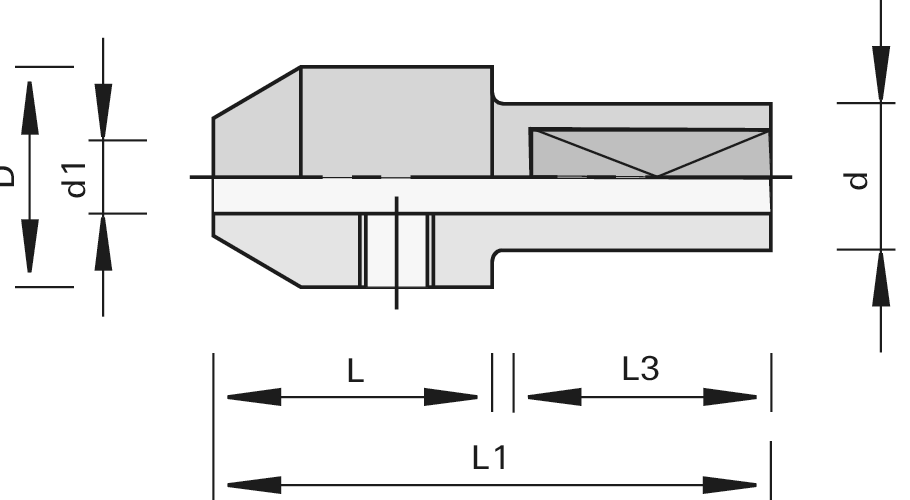

Drawing
Article
Description
Machine / Application
- for mounting of twist drills in combi chuck and Klack chuck
Design
- shank with clamping surface
- thread M5, without screw
Advantages
Notes
- adjusting and attachment screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
|
Ø d1
[mm] |

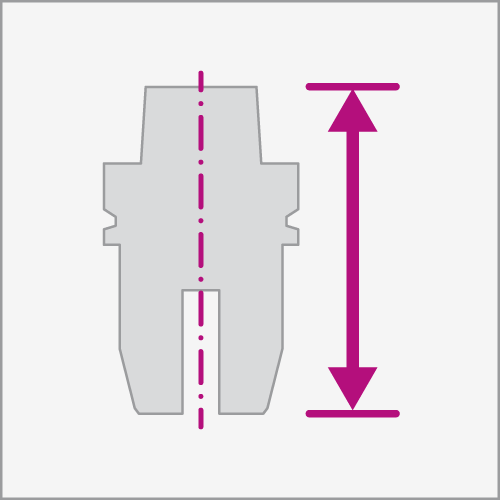

L
[mm] |
Ø d
[mm] |

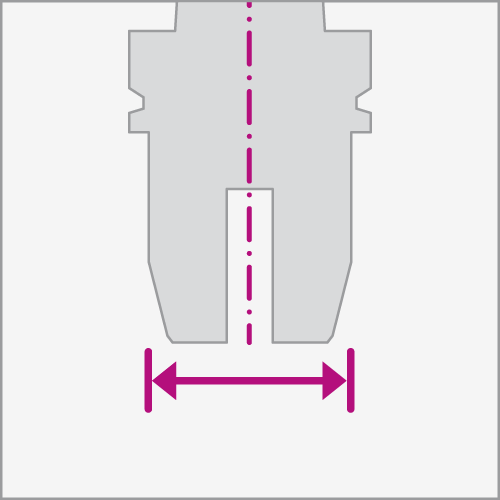

Ø D
[mm] |
L1
[mm] |
L3
[mm] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 2 | 19 | 10 | 15 | 41 | 21 | 183275 | ||
| 2,5 | 19 | 10 | 15 | 41 | 21 | 183276 | ||
| 3 | 19 | 10 | 15 | 41 | 21 | 183277 | ||
| 3,5 | 19 | 10 | 15 | 41 | 21 | 183278 | ||
| 4 | 19 | 10 | 15 | 41 | 21 | 183279 | ||
| 5 | 19 | 10 | 15 | 41 | 21 | 183280 | ||
