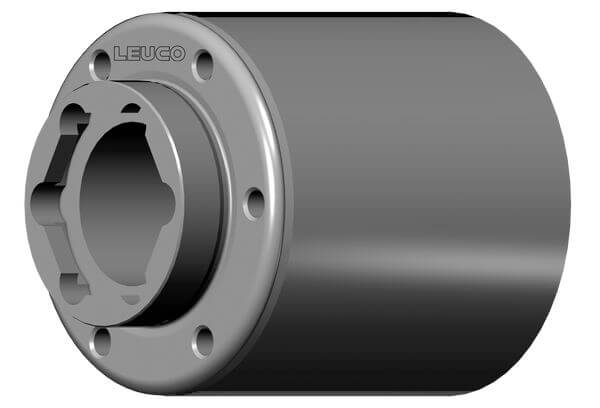

184310 - Hydro Clamping Bushings - tools with bore on spindle 30 mm
Product

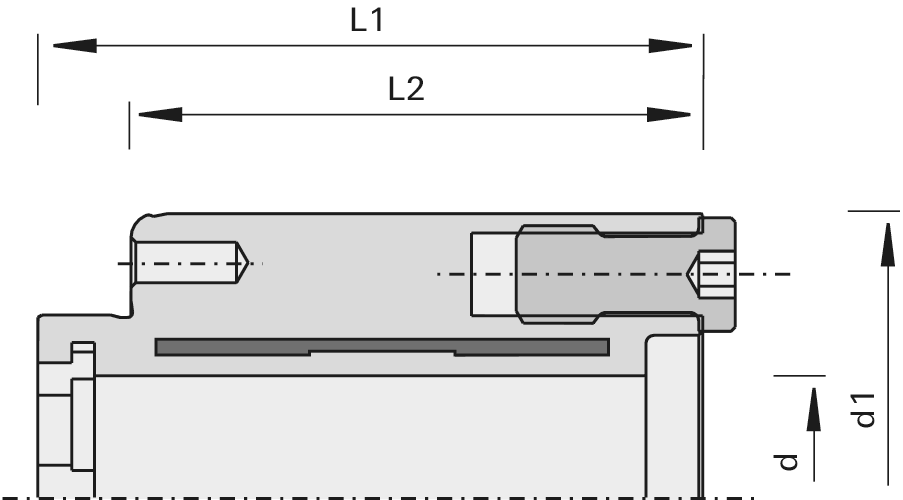

Drawing
Technical data
Description
Machine / Application
- for Homag and IMA jointing aggregat with spindle 30 mm and hexagon adapter
- for mounting of tools with bore
Design
- hardened tool mounting area
- with one clamping zone
- axial pressurization
- closed hydraulic expansion clamping chuck for tight-tolerance fit on the 30 mm motor shaft
- n max = 9,000 min-1
Advantages
- reduced machine downtimes thanks to axial pressurization
- excellent cutting quality when milling and hogging
- maintenance-free
Notes
- for clockwise and counter-clockwise rotation
- specifically designed for high-precision motors with hexagonal spindle base
- included in delivery: hydro clamping bushing without screwdrivers
| Feature | Value | |
|---|---|---|
| Ø d1 = Adapter size on the tool side | 70 [mm] | |
| L2 = Effective length | 70,5 [mm] | |
| Ø d = Adapter size on the machine side | 30 [mm] | |
| L1 = Total length | 86 [mm] | |
| Dimension | Ø70x86xØ30/70 [mm] | |
| NL = Pin holes | 6/M6/58 | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Lids with O-Rings | 40x34x11 SW17 | 184317 | |||
|
Head Cap Screws - with hexagon socket | M10x50 DIN EN ISO 4762 | 001909 | ||
|
Cranked Wrench Keys for hexagon socket screws | SW8 DIN ISO 2936 | 009677 | ||
| Hexagonal screwdriver | SW6/4x100 | 184707 | |||
|
available from stock |
|||||
