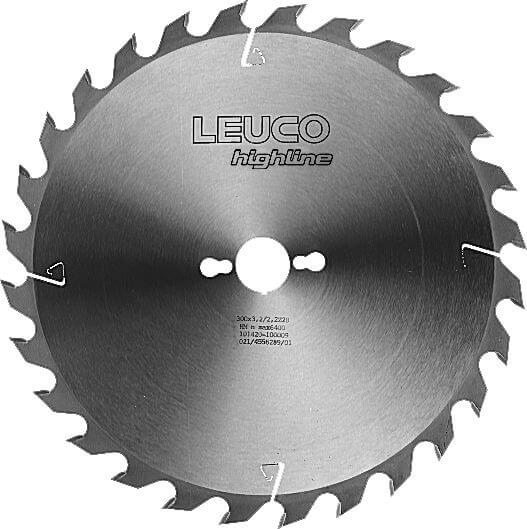

Trimming Saw Blades HW "WS"

Product

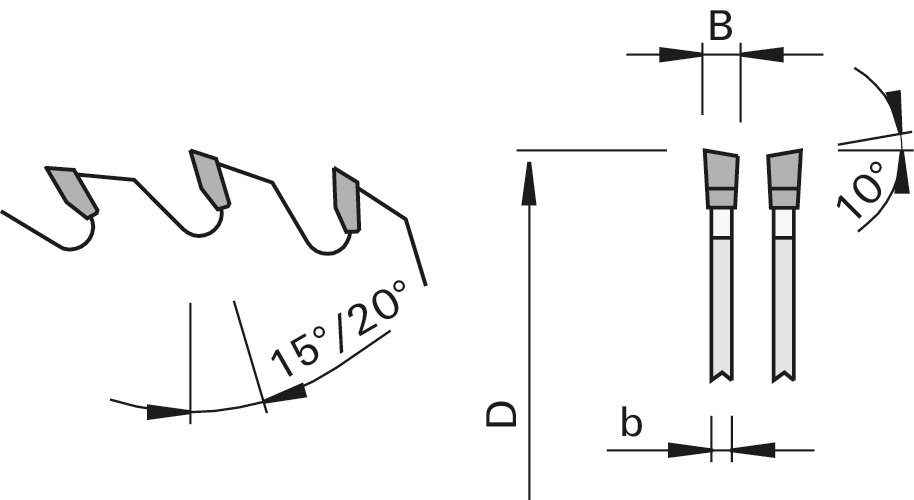

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table saws
  • for sizing cuts in solid woods

Design

  • tooth configuration: alternate top bevel "WS"
  • cutting material: HW HL Board 10

Advantages

  • noise-reduction thanks to laser ornaments for saw blades of more than Ø 250 mm

Notes

  • larger bore (max. Ø 80 mm) available for a surcharge

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
Corner∡
[°]
Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

200 3,2 2.2 30 24 2/7/42 20 10 WS HL Board 10 189932
|
250 3,2 2.2 30 24 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189933
|
250 4,4 2.8 30 20 2/7/42 + 2/9,5/46,5 + 2/10/60 15 10 WS HL Board 10 189934
|
300 3,2 2.2 30 24 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189935
|
300 3,2 2.2 30 28 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189936
|
300 3,2 2.2 30 36 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189937
|
350 3,5 2.5 30 24 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189938
|
350 3,5 2.5 30 32 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189939
|
350 3,5 2.5 30 36 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189940
|
350 4,4 2.8 30 28 2/7/42 + 2/9,5/46,5 + 2/10/60 15 10 WS HL Board 10 189941
|
400 3,5 2.5 30 28 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189942
|
400 3,5 2.5 30 36 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189943
|
450 3,8 2.8 30 40 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189944
|
500 3,8 2.8 30 44 2/7/42 + 2/9,5/46,5 + 2/10/60 20 10 WS HL Board 10 189945
|
