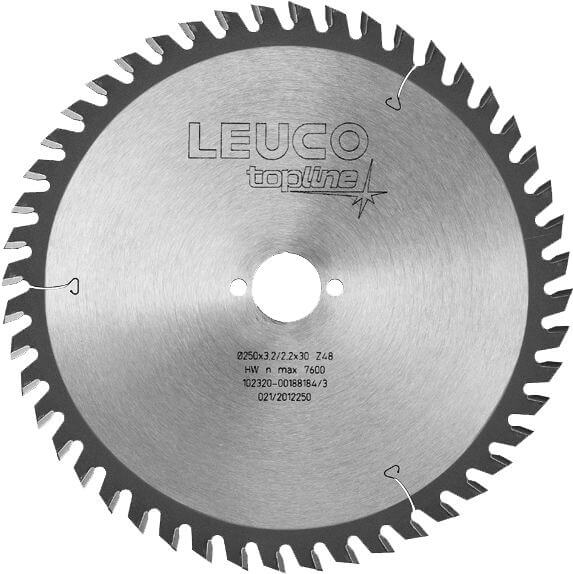

188067 - Sizing Saw Blades HW - thin "WS" - solid woods
Product
Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- table saws
- sizing saws
- cut-off saws
- for sizing and clipping cuts in solid woods
Design
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 06
Advantages
Notes
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 250 [mm] | |
| B = Cutting width | 2,4 [mm] | |
| b = Body thickness | 1.8 [mm] | |
| Ø d = Bore diameter | 30 [mm] | |
| Z = No. of teeth | 40 | |
| NL = Pin holes | 2/7/42 + 2/9,5/46,5 + 2/10/60 | |
| Hook angle = Hook angle | 20 [°] | |
| Corner∡ = Corner angle | 15 [°] | |
| Tooth geometry = Tooth configuration | WS | |
| LEUCODUR = Cutting material | HL Board 06 | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
