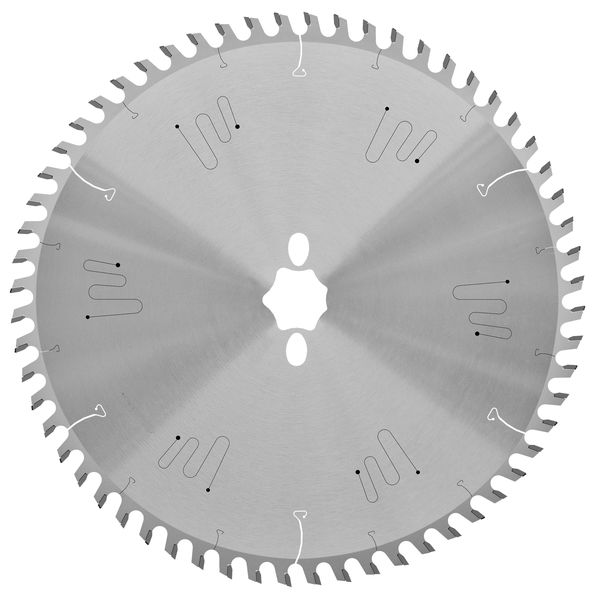

Sizing Saw Blades HW - easyFix - LowNoise

Product

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table saws
  • vertical panel sizing saws
  • for sizing cuts

Design

  • vibration and noise damping ornaments
  • cutting material: HL Board 06 and HL Board 03

Advantages

  • easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
  • extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations

Notes

  • Ident-No. 193335: extremely straight steel plate for Striebig panel sizing saws with scoring device
  • NL**- Combi3 = 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle

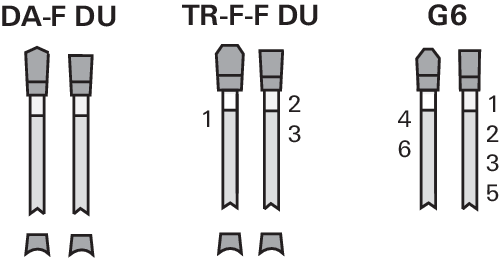

[°] 		Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

220 3,2 2.2 30 42 2/7/42 + 1/3/52 10 DA-F DU HL Board 06 193326
|
250 3,2 2.2 30 48 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 10 DA-F DU HL Board 06 193327
|
303 3,2 2.2 30 60 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 10 DA-F DU HL Board 06 Score 193335
|
303 3,2 2.2 30 60 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 10 DA-F DU HL Board 06 193328
|
350 3,5 2.5 30 72 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 10 DA-F DU HL Board 06 193329
|
400 3,5 2.5 30 84 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 10 DA-F DU HL Board 06 193330
|
250 3,2 2.2 30 48 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -5 DA-F DU HL Board 06 193331
|
303 3,2 2.2 30 60 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -5 DA-F DU HL Board 06 193332
|
350 3,5 2.5 30 72 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -5 DA-F DU HL Board 06 193333
|
303 3,2 2.2 30 60 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 10 TR-F-F DU HL Board 03 193334
|
